- Certification: CE
- Origin: Mainland China
- Smart home platform: NONE
- Model Number: RF 433MHz smoke detector
- Type: Smoke Detector
- Gas Type: Smoke alarm
- Power Supply: batteries x2
- Sensor Type: Infrared photoelectric Smoke sensor
- Gas Detector: Smoke Sensor
- Smoke sensor sensitive: 2.06ft ±1.3
- smoke detector RC: 433MHz
- Audible alarm: >85dB/3M
- Installation: Ceiling Mounted

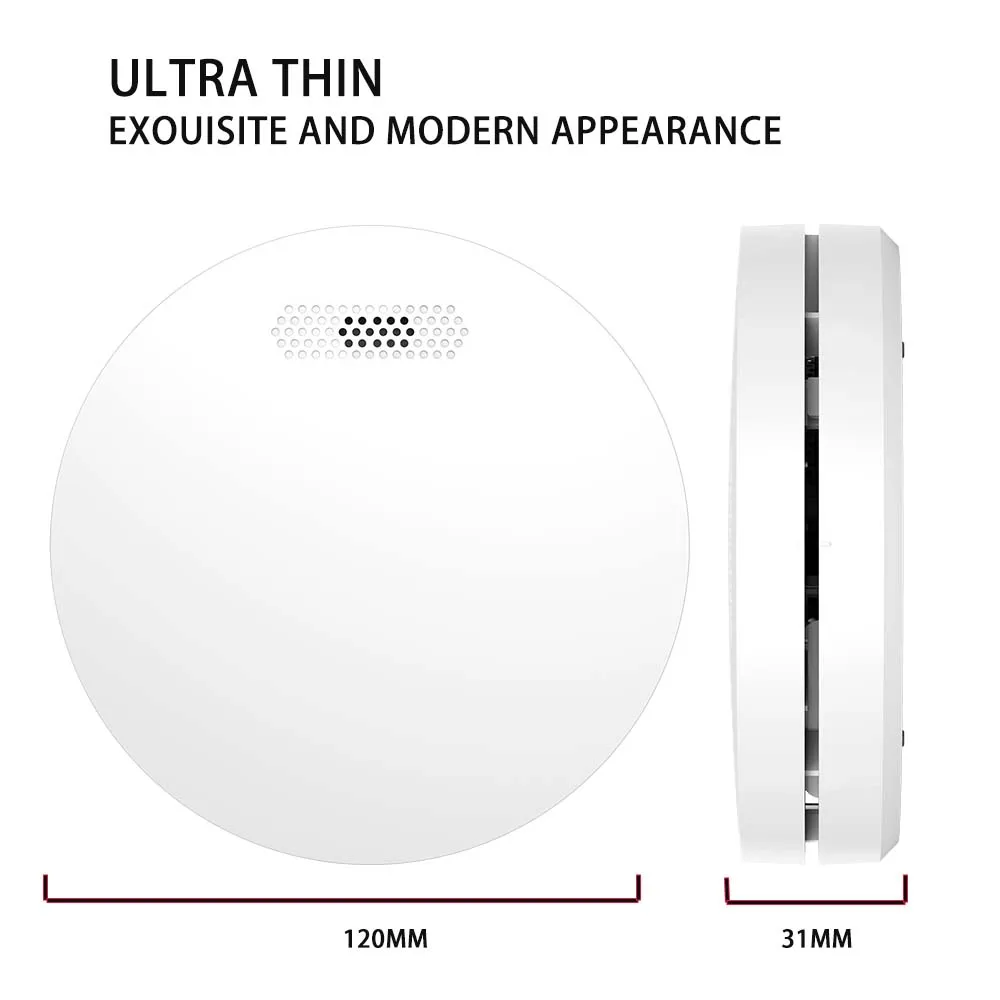

- Dimension: 102*31mm
- Fire alarm: Sound and Light
- Feature: Ultra-thin
- RF Remote control: Interconnected Smoke Detector

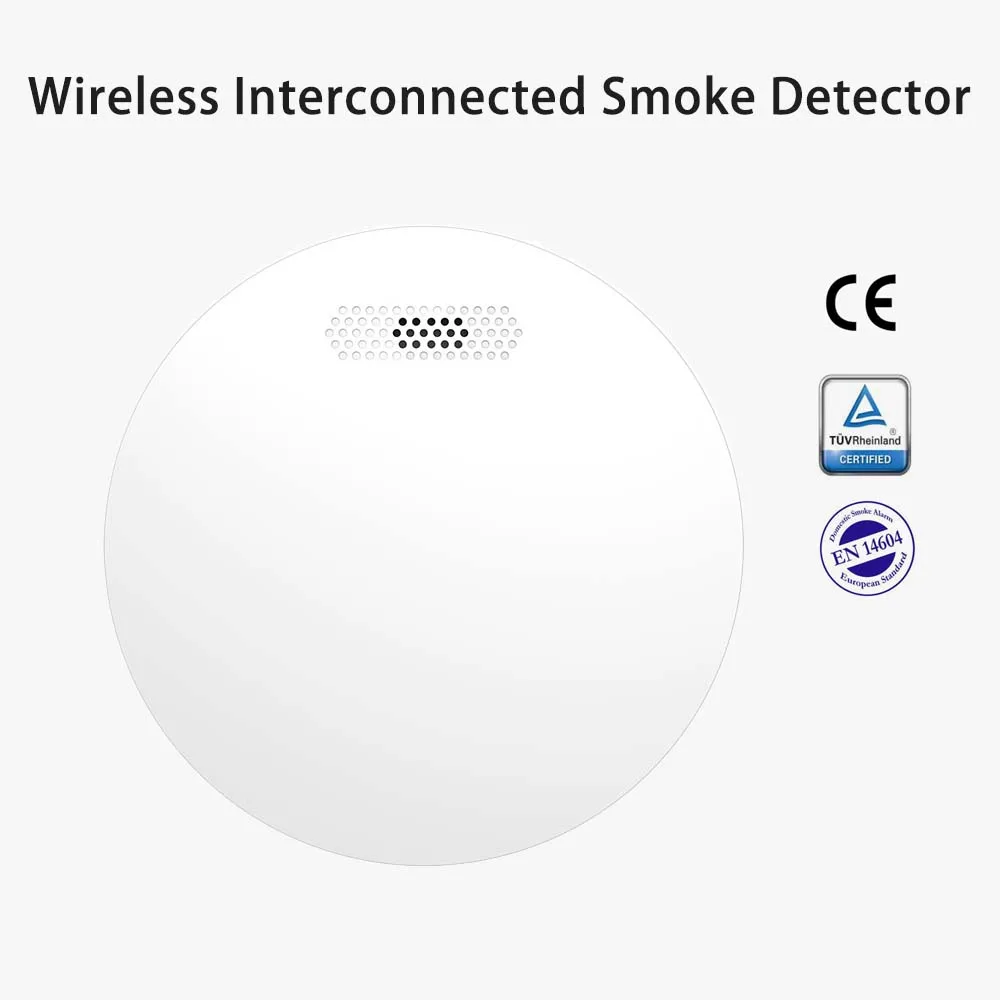

Wireless Interconnected Smoke Detector Fire Alarm
Describe:
Smoke sensor: Photoelectric 433MHZ
Audible alarm:>85dB/3M
Mode : RF smoke detector

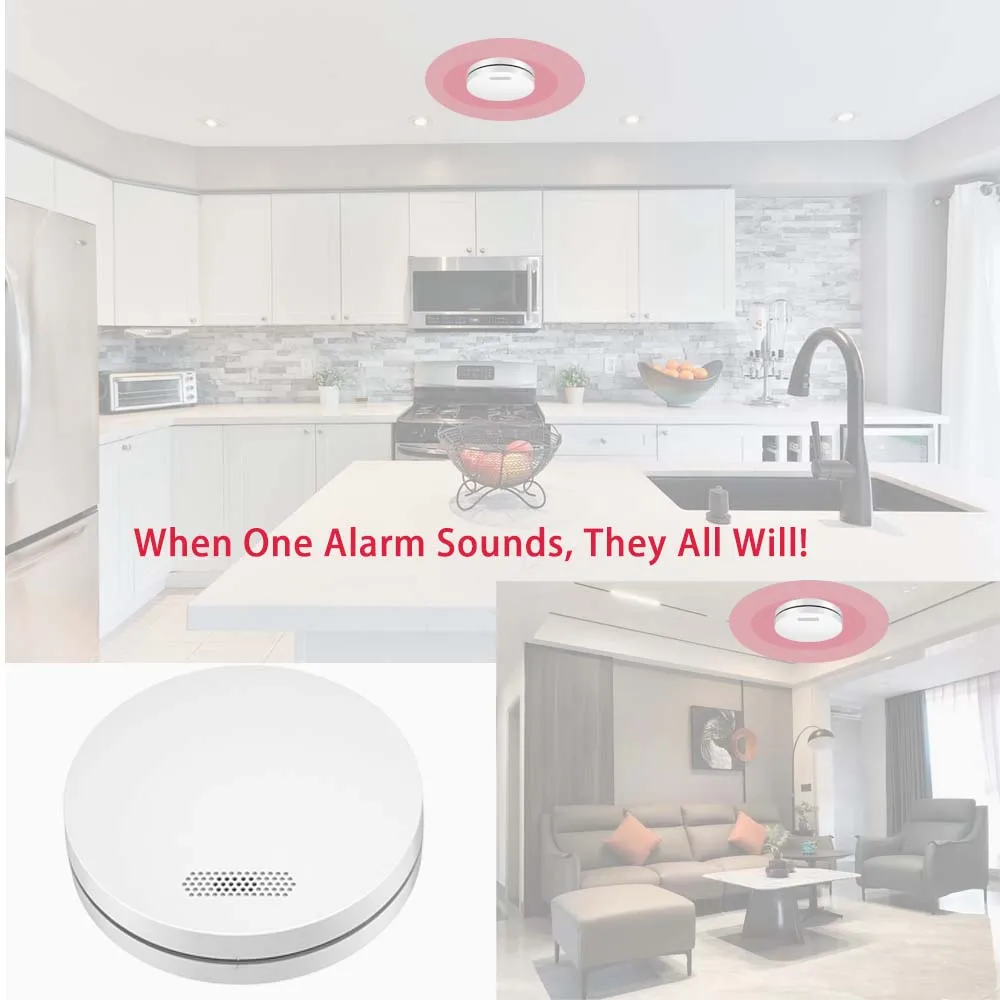

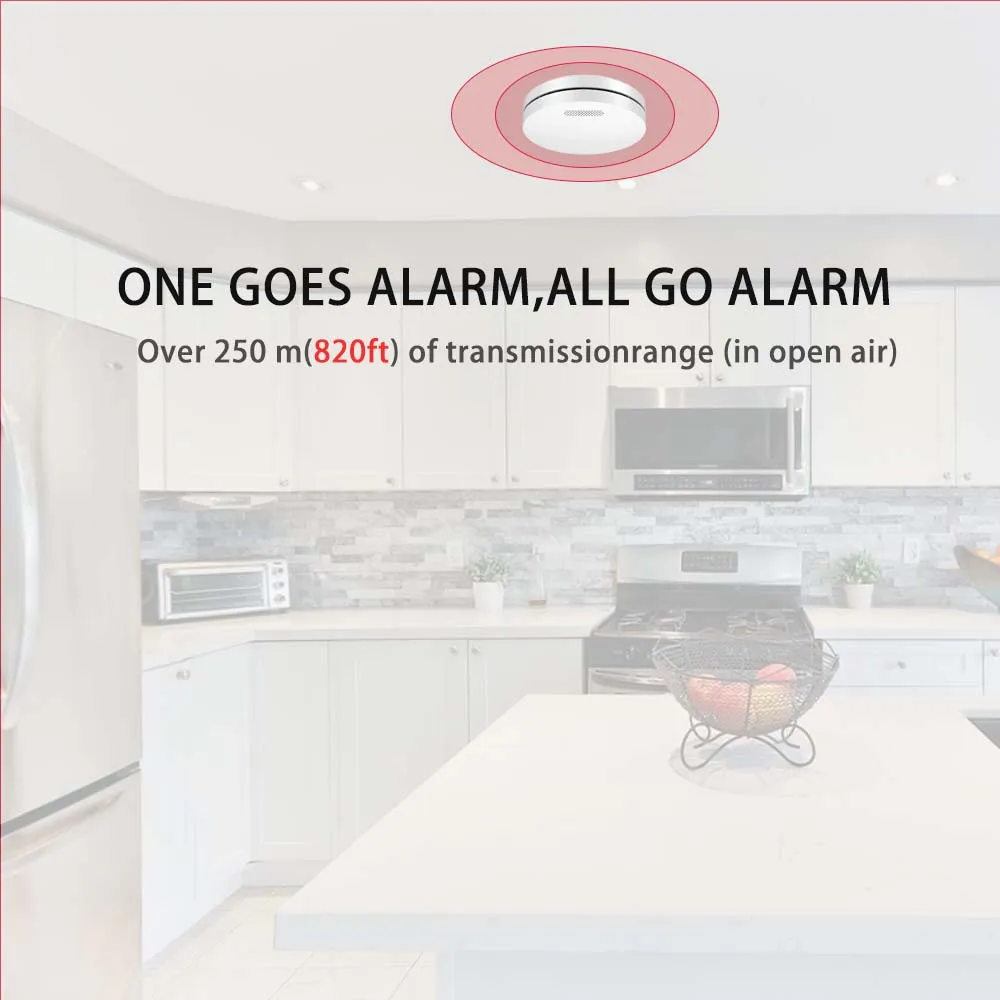

Main Feature : When an alarm is activated, all connected smoke detectors will alarm.
Power: 2*1.5V AA Alkaline or Carbon Zinc battery (Not include)
Battery Package: Alkaline (LR6、MN1500) or Carbon Zinc battery (R6P)
Operation Current: <10uA (standby); <70mA (alarm)
Alarm Volume: >85 dB(A) at 3 meters
Alarm Sensitivity: 0.09 – 0.17 dB/m
Low Battery: 2.6 ± 0.1 V
Silence Time: approx. 10 minutes
Comply to Standard EN14604:2005/AC:2008

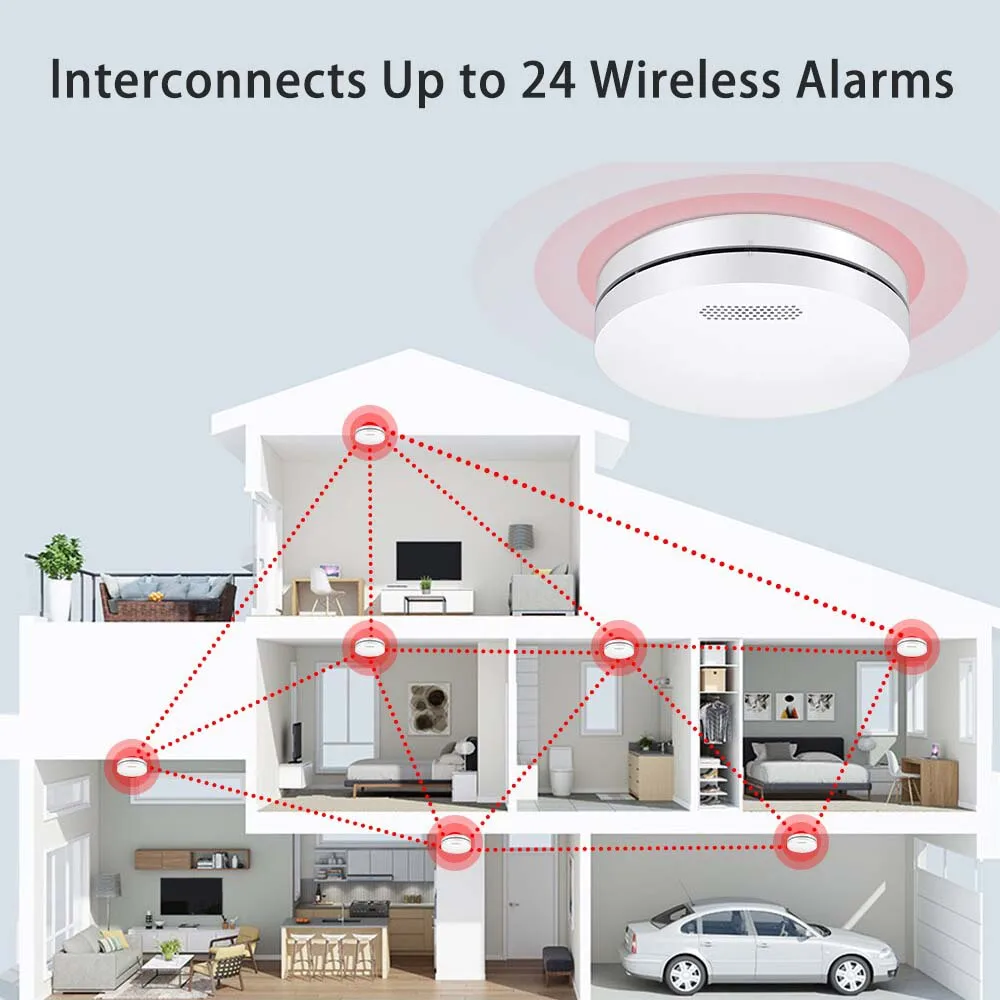

Interconnects Up to 24 WIreless Alarms
The multi-pack detectors have already been connected for instant use, and you can connect up to 24 Link+ wireless alarms at a time

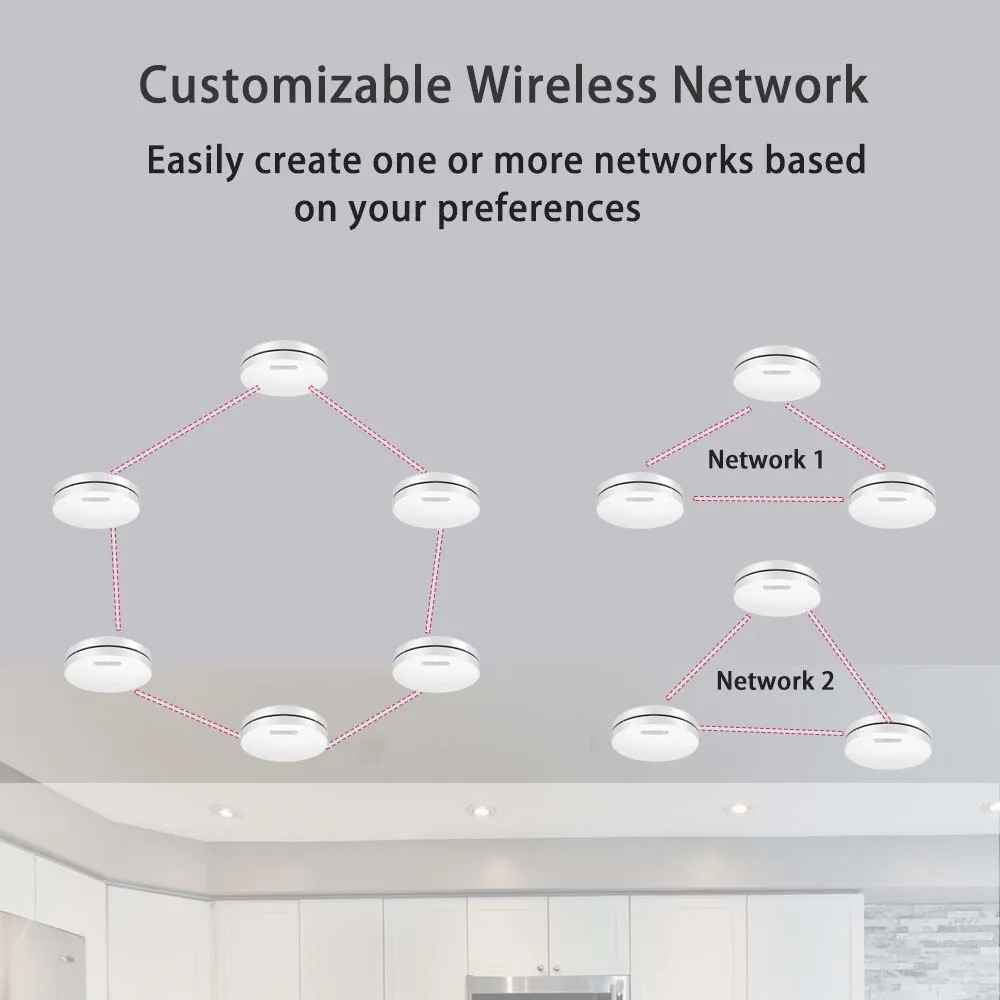

Customizable Wireless Network
For a customized network, add new devices to the existing network, or disconnect the devices and create multiple networks

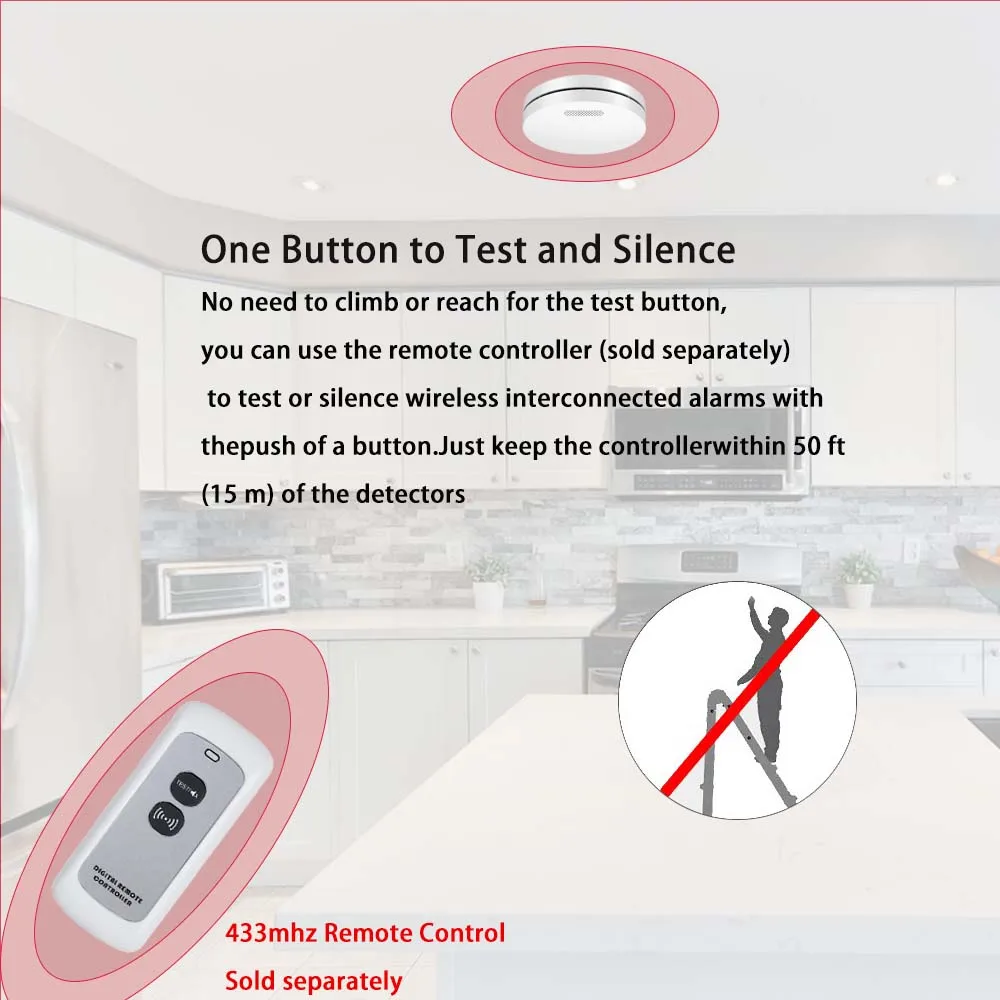

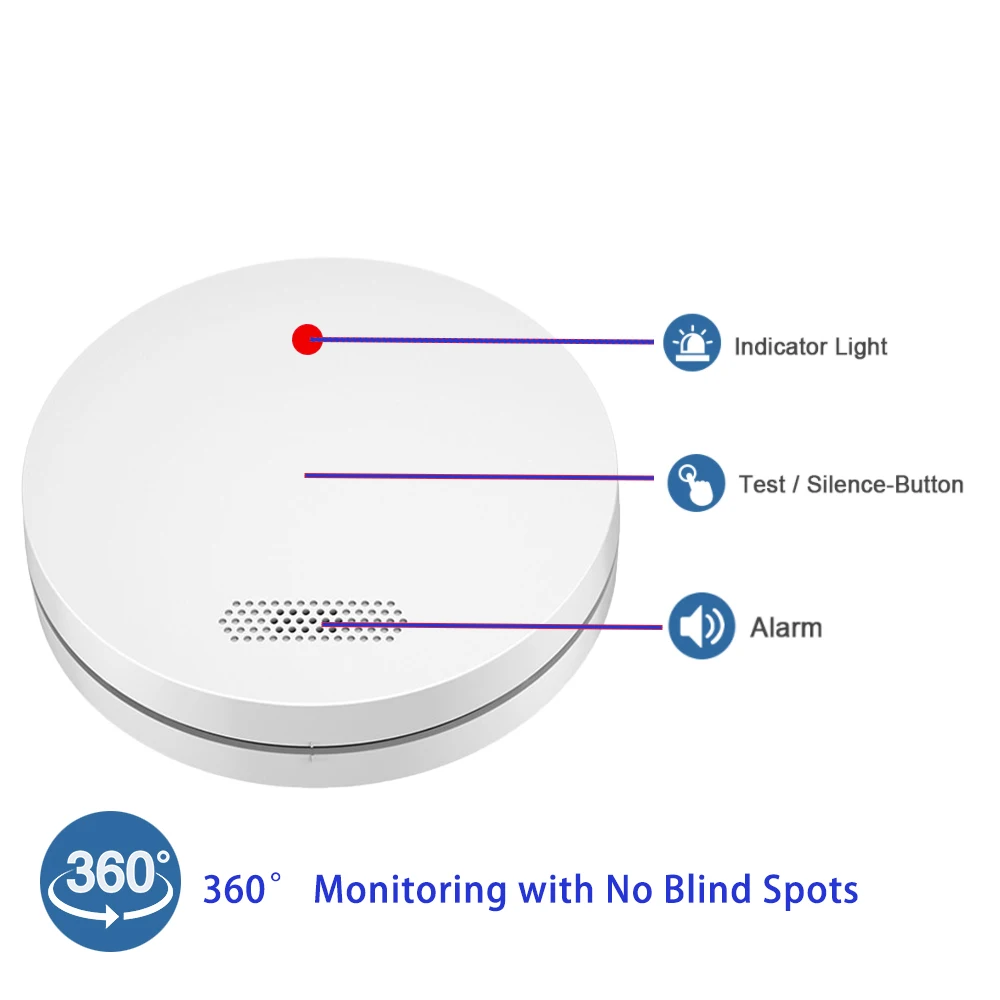

One Button to Test and Silence
No need to climb or reach for the test button, you can use the RF 433MHz remote controller (sold separately) to test or silence all Link+ wireless interconnected alarms with the push of a button. Just keep the controller within 50 ft (15 m) of the detectors.

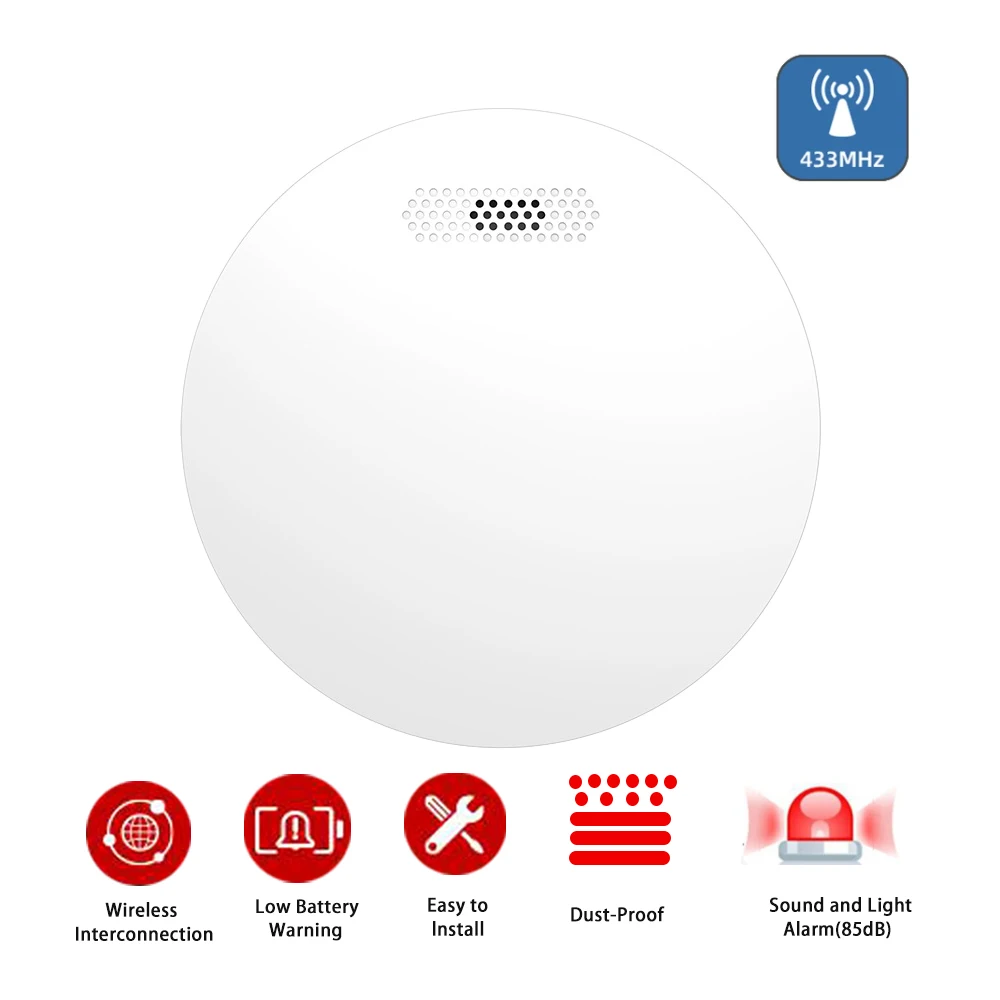

85dB Sound and light,Dustproof design,Low Battery Warning

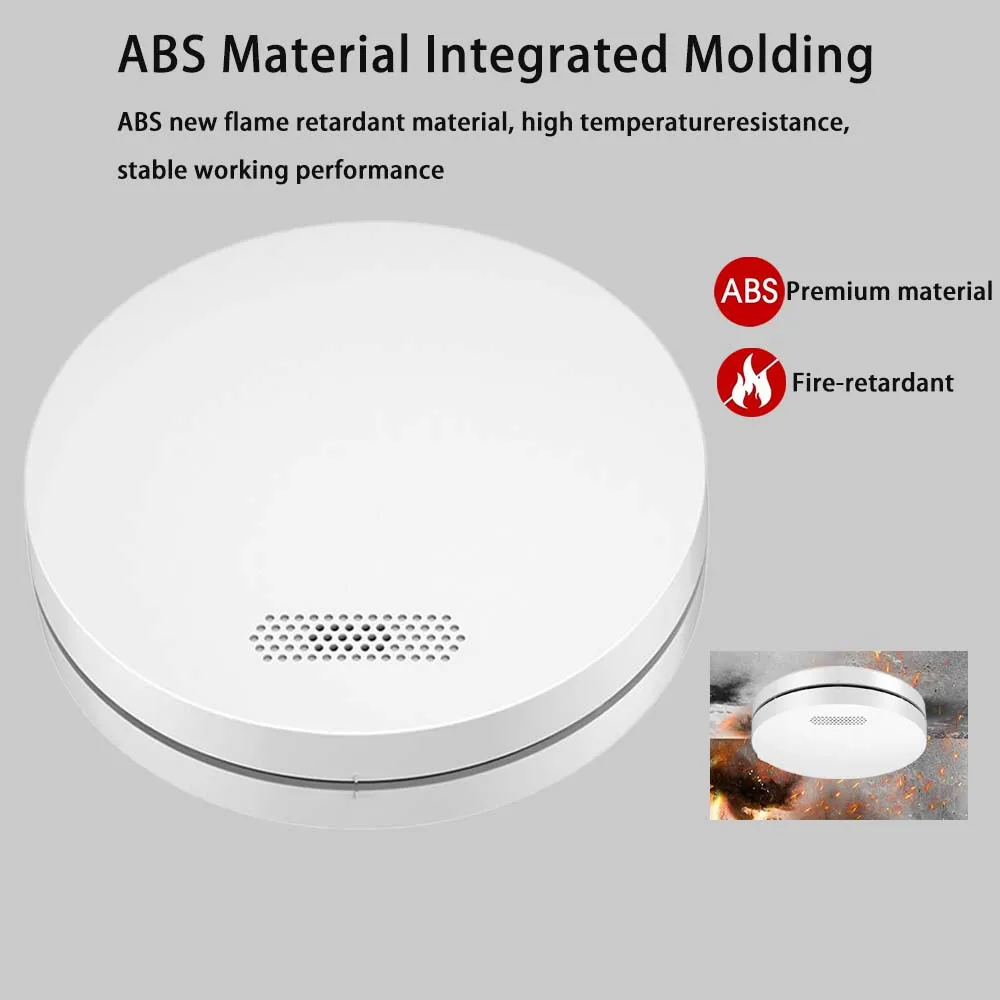

Environmental protection material
Integrated Molding ABS new flame retardant material, high temperatureresistance, stable working performance
Made of eco-friendly and fire-retardant ABS plastic material,high temperature is not easy to burn,compression resistance,good flexibility
How to Interconnect:
Press the test/silence button on one alarm 4 times. This smoke alarm will Green LED will flash continuously. other smoke alarm press test/silence button 2 times,It will flash green light quickly,Then don’t flicker. Until the first smoke alarm you use stops flashing (about 1-2 minutes), you will be able to press the test button to test it.You can add up to 24 433mhz Interconnect smoke alarms in this manner.

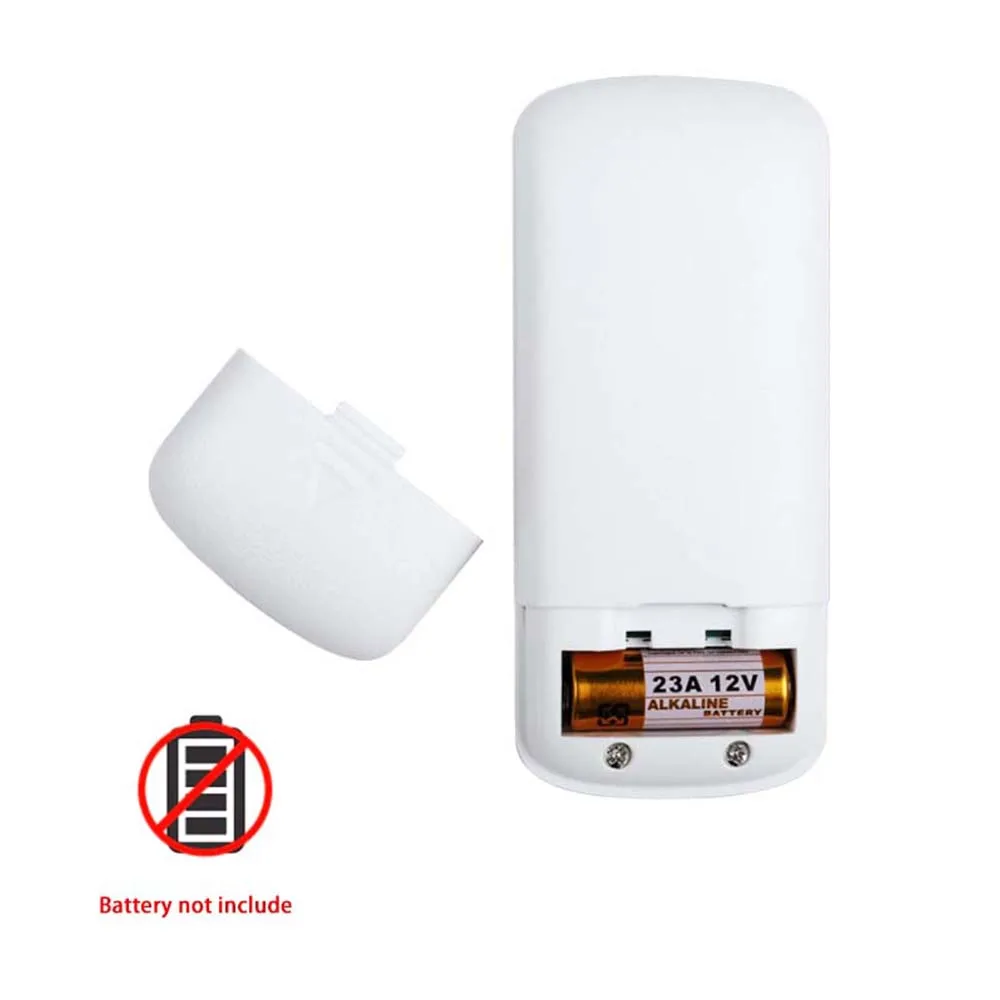

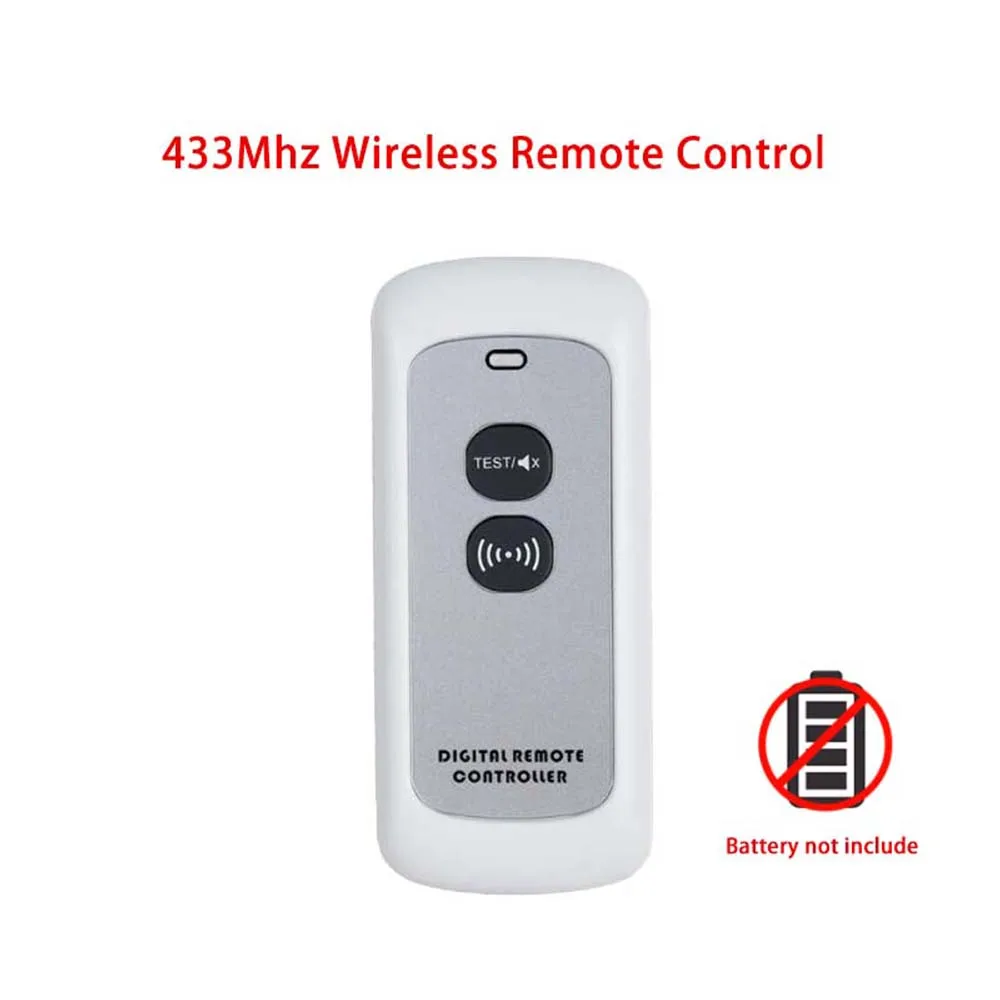

Remote Control for Interconnected Smoke Detector
Choose a networked alarm arbitrarily, press the center of the cover twice continuously,
The green LED starts to flash quickly, and the alarm enters the receiving mode; long press the remote control configuration button
Button (signal button), ,, the red LED is always on, the remote control enters the transmitting mode, wait for the alarm to receive the signal
After the number, the green LED stops flashing, indicating that the remote control is successfully networked and you can release the configuration.
Machine button (signal button);
After the device is successfully set, you can press the TEST/HUSH button (test button) of the remote control to
Remote control self-check or mute the alarm;
Home Securoty Fire Protect
Where to install:
1.At first you should install an alarm in the bedroom and walkway. If there are several bedrooms in the house, please install an alarm in every bedroom.
2.Install an alarm above the stairway and on every floor of the house.
3.Smoke, heat and burning things will spread horizontally after rising to the ceiling, so install the alarm in middle of the ceiling.
4.If the alarm can not be installed in the middle of the ceiling, install it keeping 300mm away from the corners .
5.If the alarm is installed in the wall, it should keep 100mm away from the ceiling.
6.If the length of the room or the hall is beyond 30 foot, you need to install several alarms there.
7.When the wall or ceiling is slanting, the alarm needs to be installed minimum 500mm away from the highest wall or ceiling point in the room
