- Brand Name: BESDER
- Origin: Mainland China
- Network Protocol: TCP/IP,DHCP,SMTP,DDNS,PPPoE,FTP
- Two-way Audio: NO
- Compression Format: H.265
- Wireless Security: WEP
- Hard drive Interface Type: SATA
- POE: 8 Port
- Certification: CE
- e-Cloud(P2P): YES
- IP Mode: Dynamic IP address,Static IP address
- Hard Drive Size: 3.5”
- Video Input Interface: RJ45
- Supported Mobile Systems: iPhone OS,Android
- Audio Compression Format: G711A
- Model Number: N6104HE / N6108HE
- Audio Input: 1 RCA
- Technology: Network
- Supported Operating Systems: Microsoft Windows XP,Microsoft Windows 7,Mac OS
- Video Standard: NTSC,PAL
- Smart home platform: Other
- Backup Type: Hard Drive,USB Flash Divers
- Video Resolution: 5MP
- Alarm Action: FTP Photo,Email Photo,Local Alarm
- Video Output: 1VGA 1HDMI-Compatible
- Network Interface: RJ45 10/100M
- Audio Output: 1CH RCA
- Communication Interface: None
- Video Input: 8CH 4K / 4CH 4K
- ONVIF Compatible: Yes
- Face Detection: Support
- Remote Playback: Support
- Channel: 8CH/4CH Optional
- POE Power: 48V
- Motion Detection/FTP/Email: YES
- Remote Viewing: ICSEE APP and APP XMEye
- Playback Quality: 4K/8MP,4K/5M/4M/3M/1080P
- Net Weight: 1600g
- HDD Maximum Capacity: 14T
- DIY Installation: Support
- Video Recording: 24/7 Record and Playback
- Support Terminal: Android / IOS / Windows / Mac OS
- Main Processor: Hi3536E
- Operating System: Embedded LINUX operating system
- Screen Display: 1/2/4/6/9/10 screen
- Access Bandwidth: 72Mbps

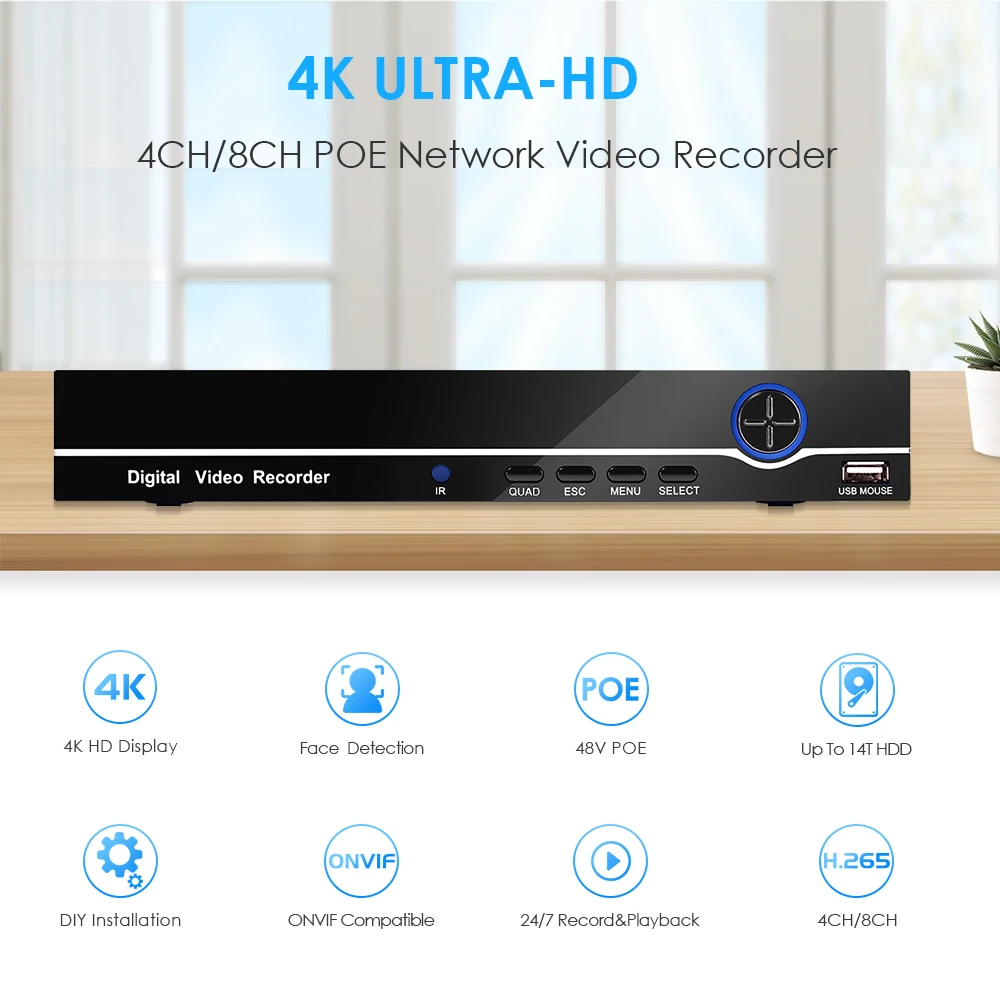

8CH/4CH 4K H.265 POE Network Video Recorder
●4K HD / H.265 / POE / Face Detection / ONVIF / 24/7 Recording
Main Feature:
● 8/4 Channels NVR optional;
● Preview:
4CH(1/2/4/6/9/10), Display quality:Max:4K,
8CH(1/2/4/6/9/10), Display quality:Max:4K;
●Video input (IP)
4CH: 4*4K(Access bandwidth 72Mbps）
8CH: 8*4K(Access bandwidth 72Mbps）
● Main processor: Hi3536E;
● New AI technology supports human shape and face detection (need to cooperate with our camera);
● Local playback (real-time + non-real-time): local playback (real-time + non-real-time)
● Advanced H.265+ Video Compression, support H.265+/H.265AI(compatible with H.264, H.265) Onvif IP cameras;
● Playback quality: Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding;
● Mobile phone remote monitoring (iOS, Android)XMeye and iCSee;
● Display: support 1CH VGA, 1CH HDMI HD output;
● Operation interface: 16-bit true color graphic menu operation interface, support mouse operation;
● Support multiple recording modes: Manual>Alarm>Dynamic Detection>Timing, you can set the corresponding recording mode according to your needs
● The NVR supports 7×24 hours loop recording, motion detection recording, and other recording modes, you can playback the recording to view;
●Playback quality: 4K/5M/4M/3M/1080P
● The NVR with 1 SATA(Up to 14TB for each disk);
● Network interface:1*RJ45 10M/100M Adaptive Ethernet port;
● Work environment：Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
●System resources: Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-channel multi-person network operation, USB backup
●Video output: 1 channel HDMI high-definition output, 1 channel VGA output

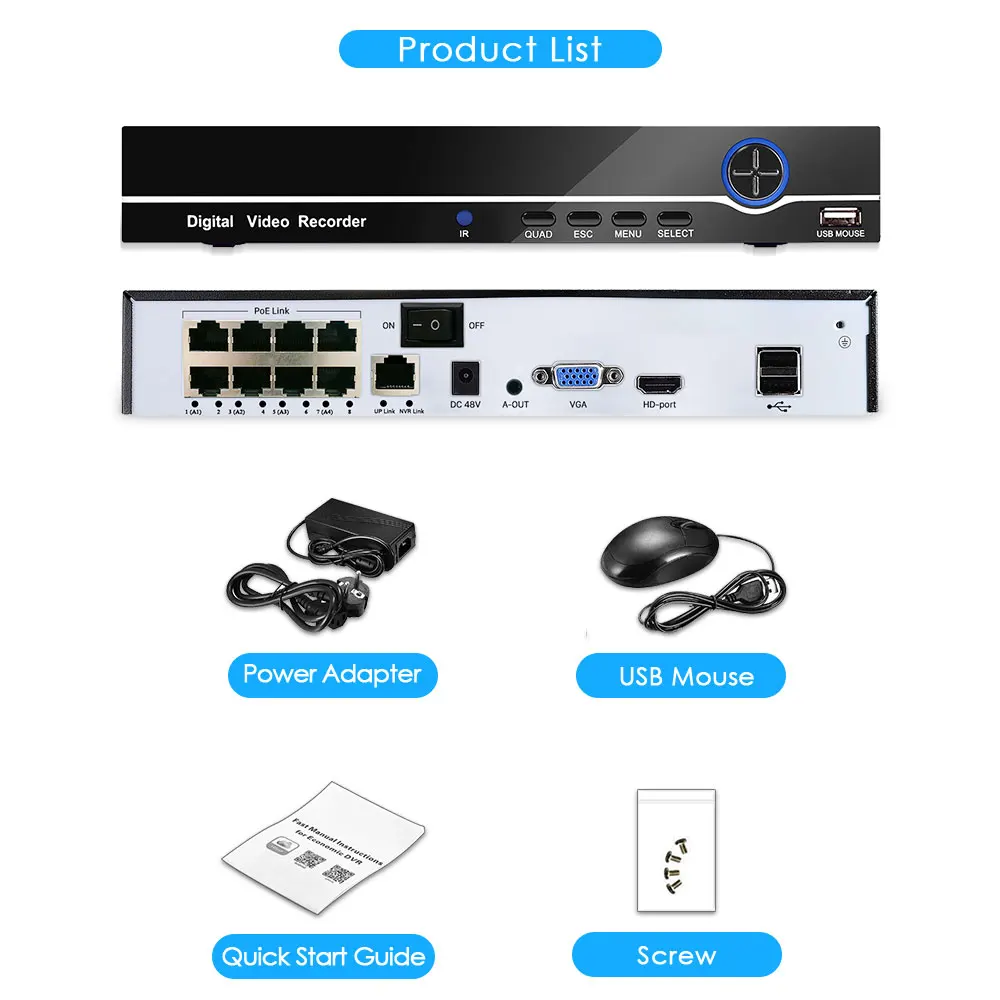

Package Contents
●1* 8CH/4CH H.265 POE NVR
●1* USB Mouse
●1* DC12V Power Adapter for POE NVR
●1* User’s Manual

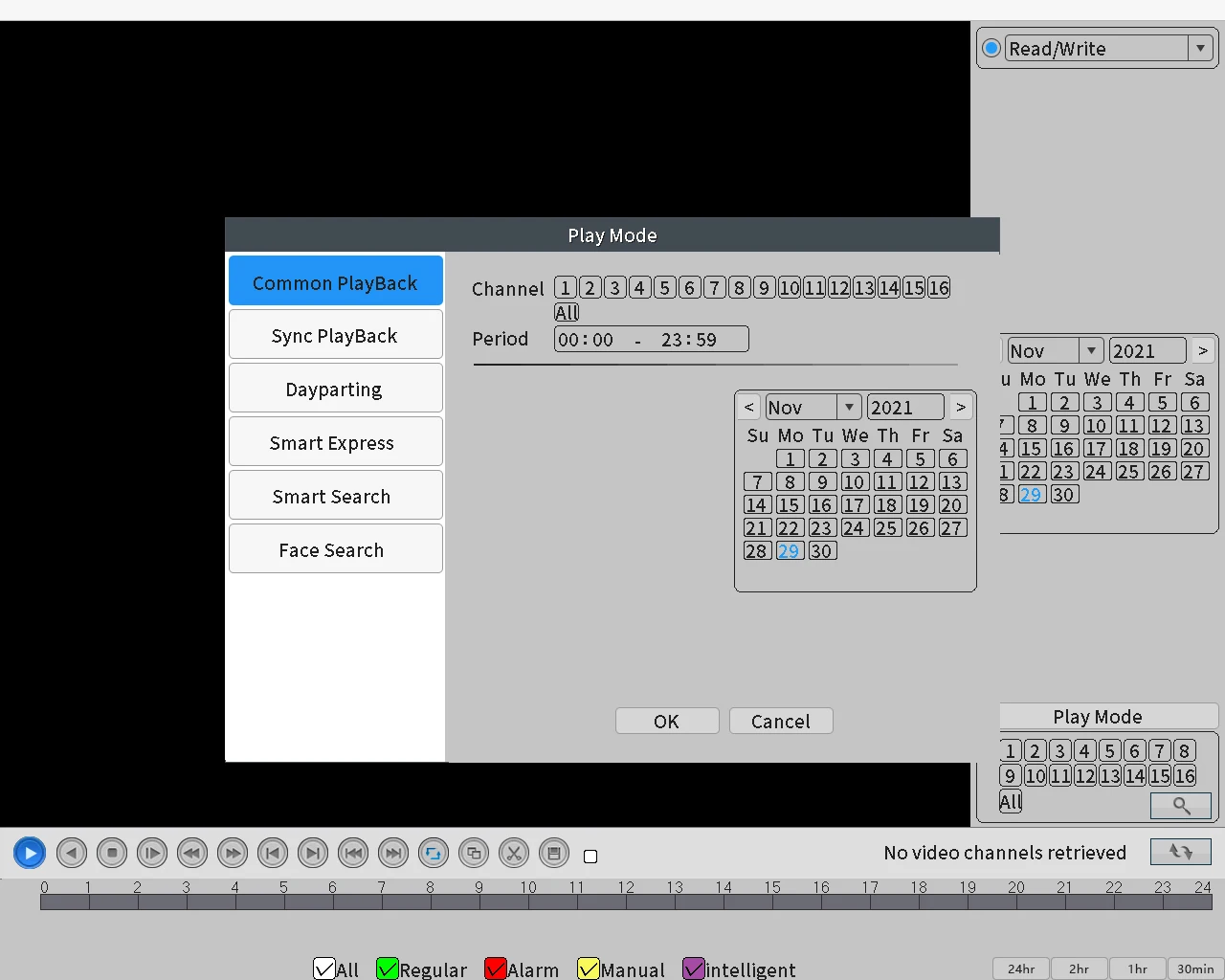

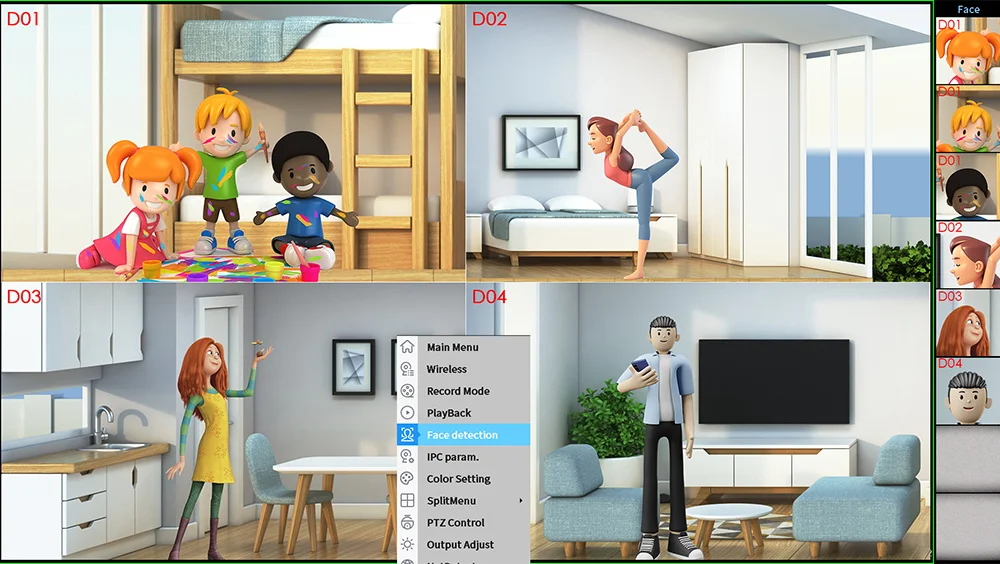

New Face Record/Face Detection/Face Playback technology
New AI technology supports face detection, without missing any details.
Note: you need to use the Face Detection Function IP Camera(recommend cooperating with our camera)
Advanced H.265+ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265+ video saves around 70% of the bit rate at the same quality of coding.
4K Super HD Resulution
4K NVR provides crystal-clear images and videos with 3840x2160P HD resolution, ultra-clear resolution, make the details clearer

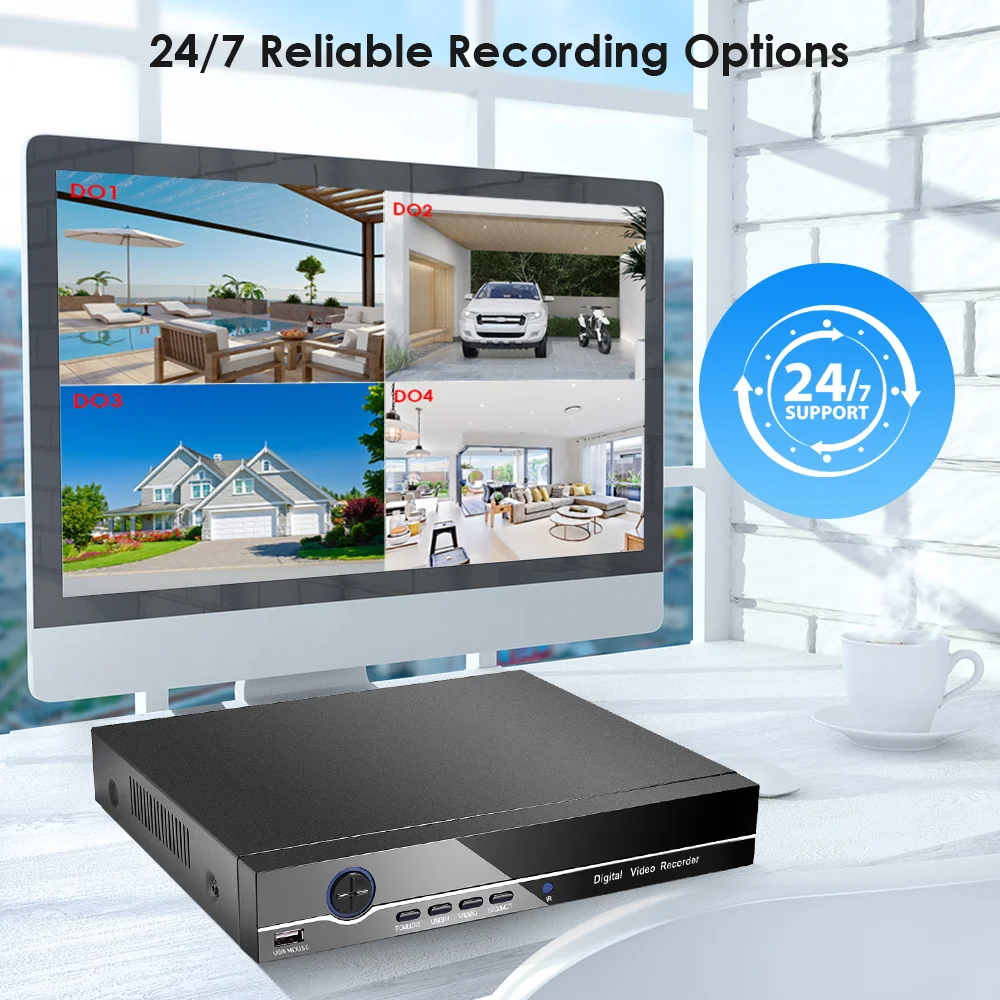

Smart 24/7 Recording
The kit supports 7×24 hours loop recording, motion detection recording, and other recording modes, you can playback the recording to view;

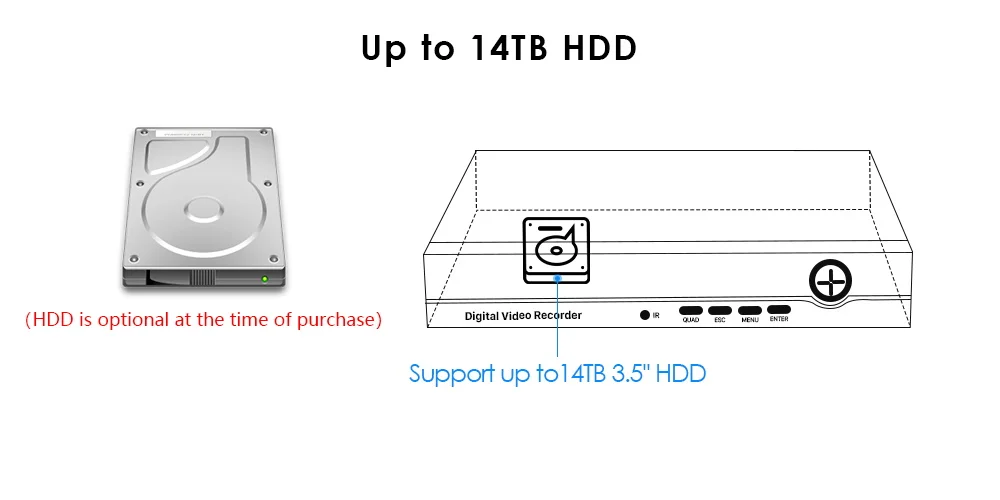

The NVR with 1 SATA port, HDD Storage & Playback
suppport up to 14TB HDD (optional at the time of purchase);and it can also support cloud storage!

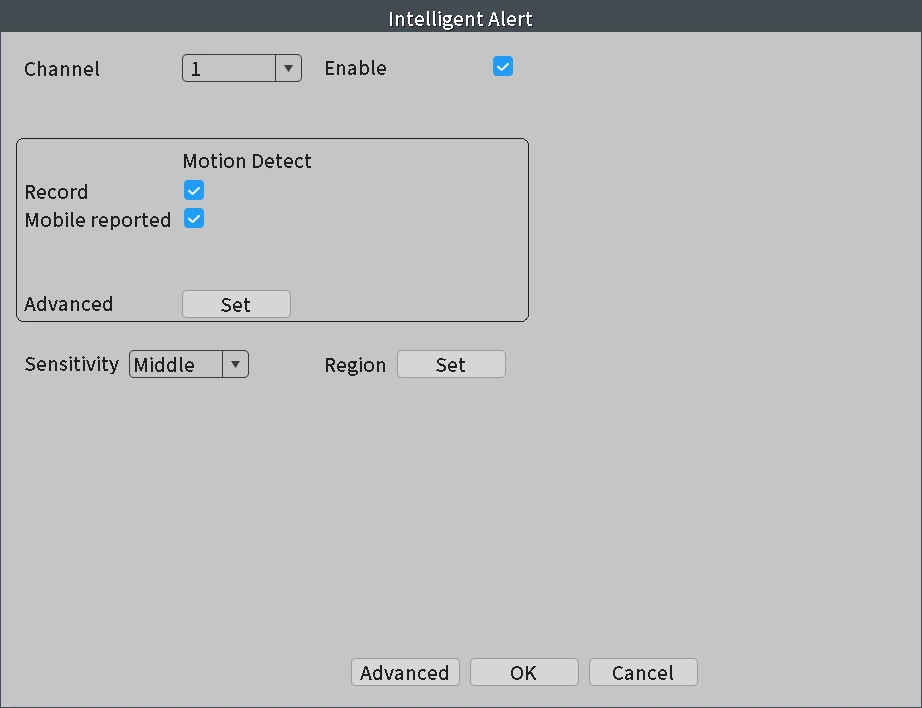

Motion Detection & Email Alert/Record
when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.

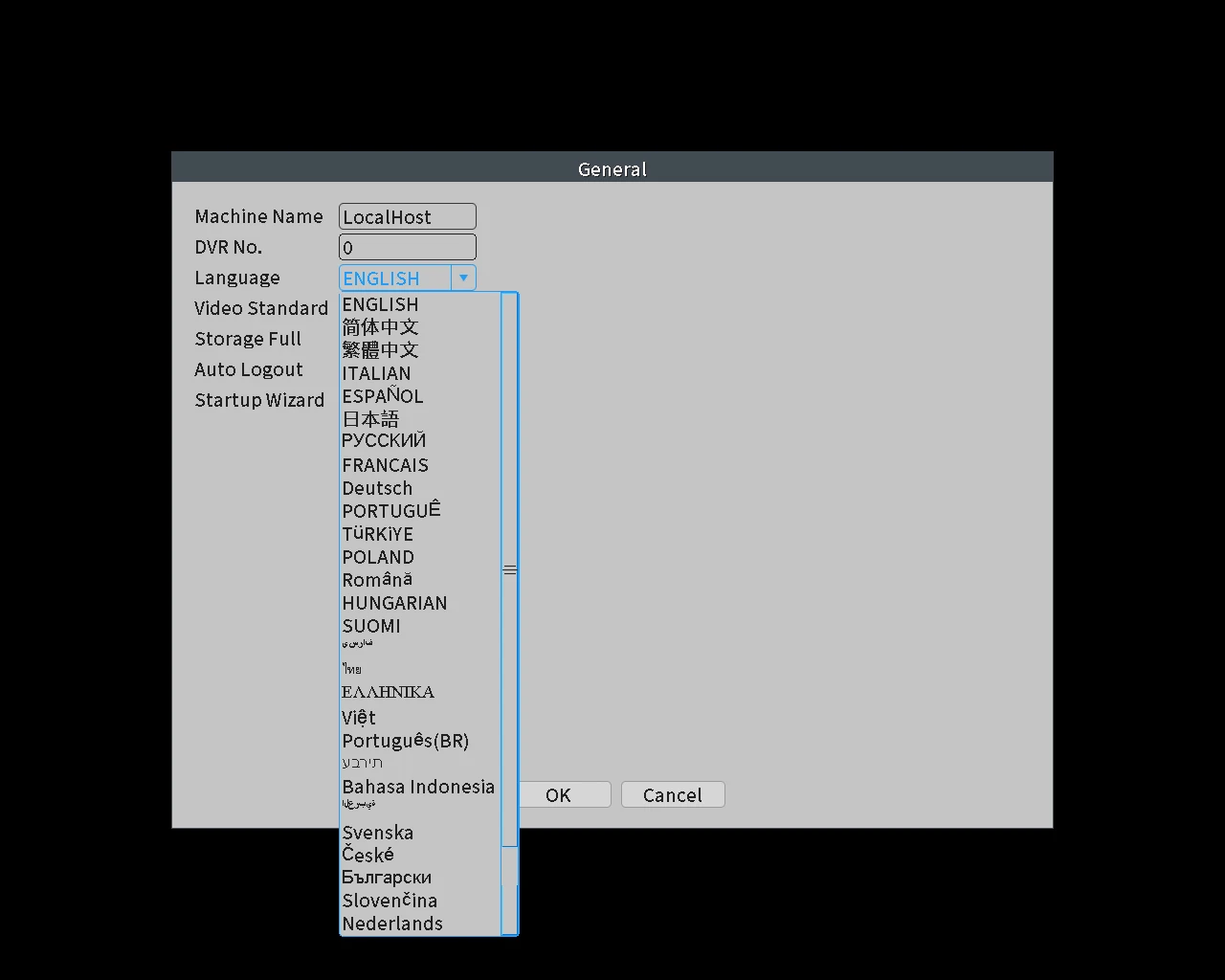

Support Multiple Language
support more than 20 languages, Chinese, English, Russian, Portuguese, French, German, Polish, Dutch, Hungarian, Turkish, Japanese, Turkish, Romanian, Indonesian Etc…….
(Note: If you need set language for your local use, please leave us a message, we would set and send it to you)

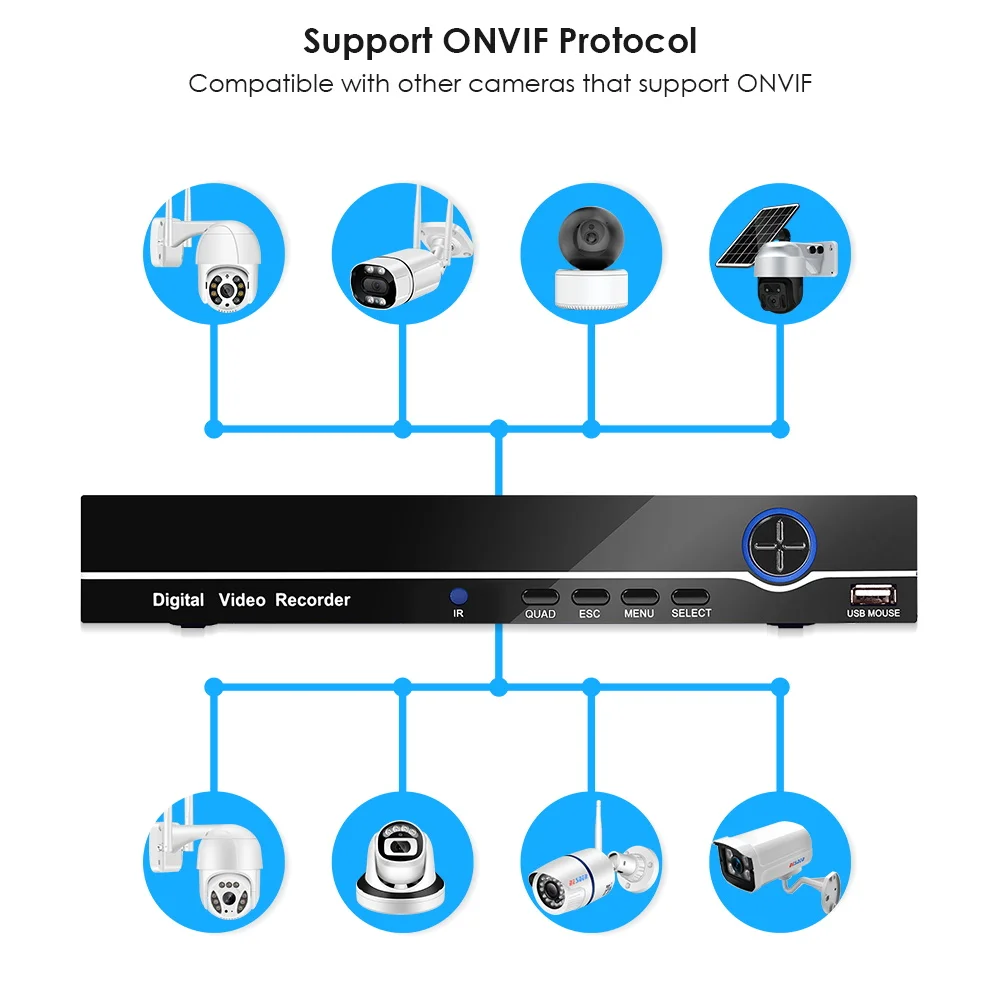

ONVIF Support
It’s can compatible with our own brand of the network video products,It can implement multiple devices connected to each other, mutual communication.
Real-time P2P viewing
Support Mobile Phone iOS, Android System，Remote view of mobile phones, any time… any where…

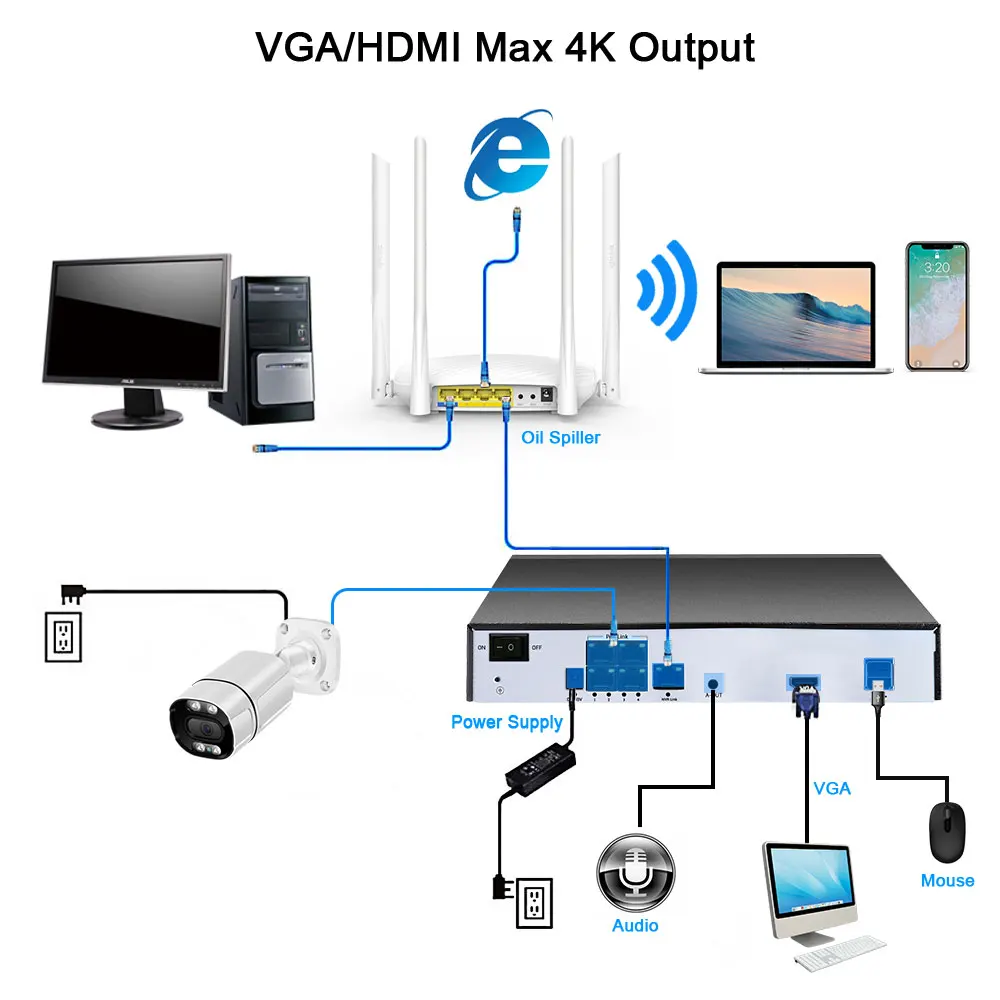

Easy connection

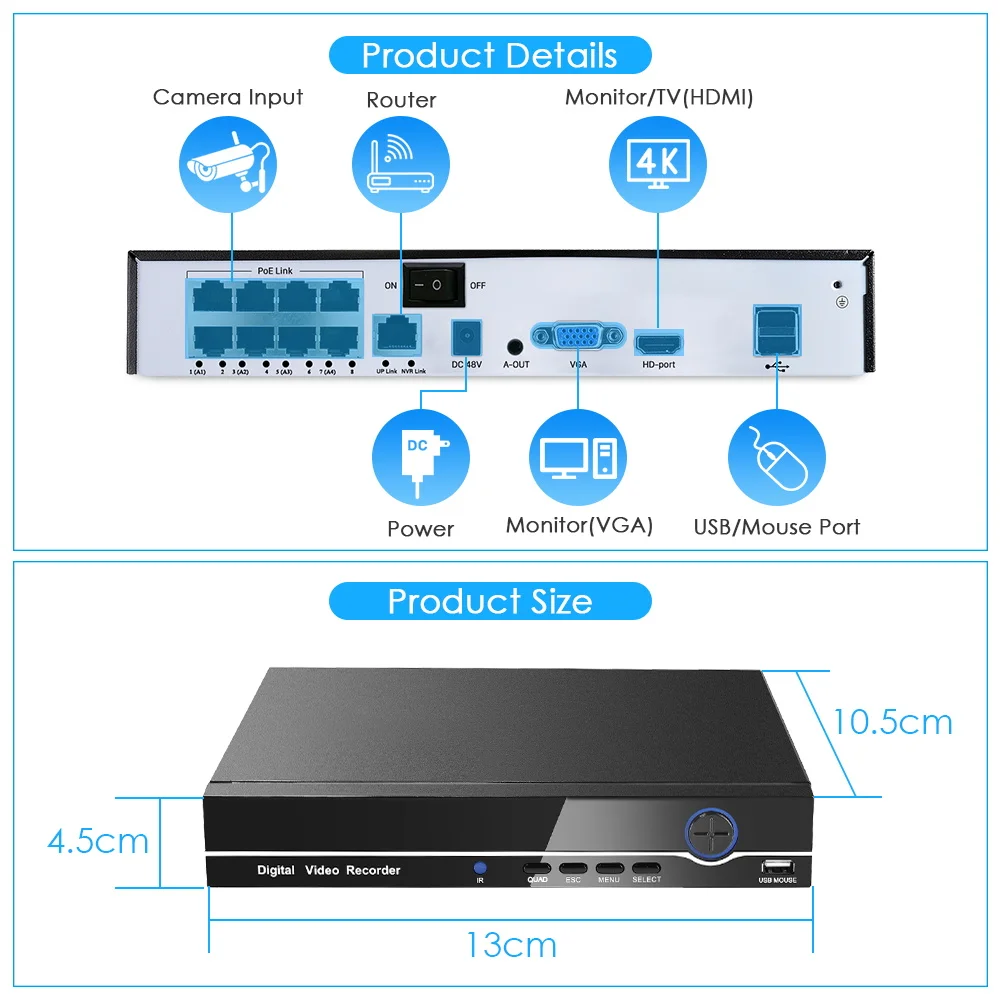

Product Port Details

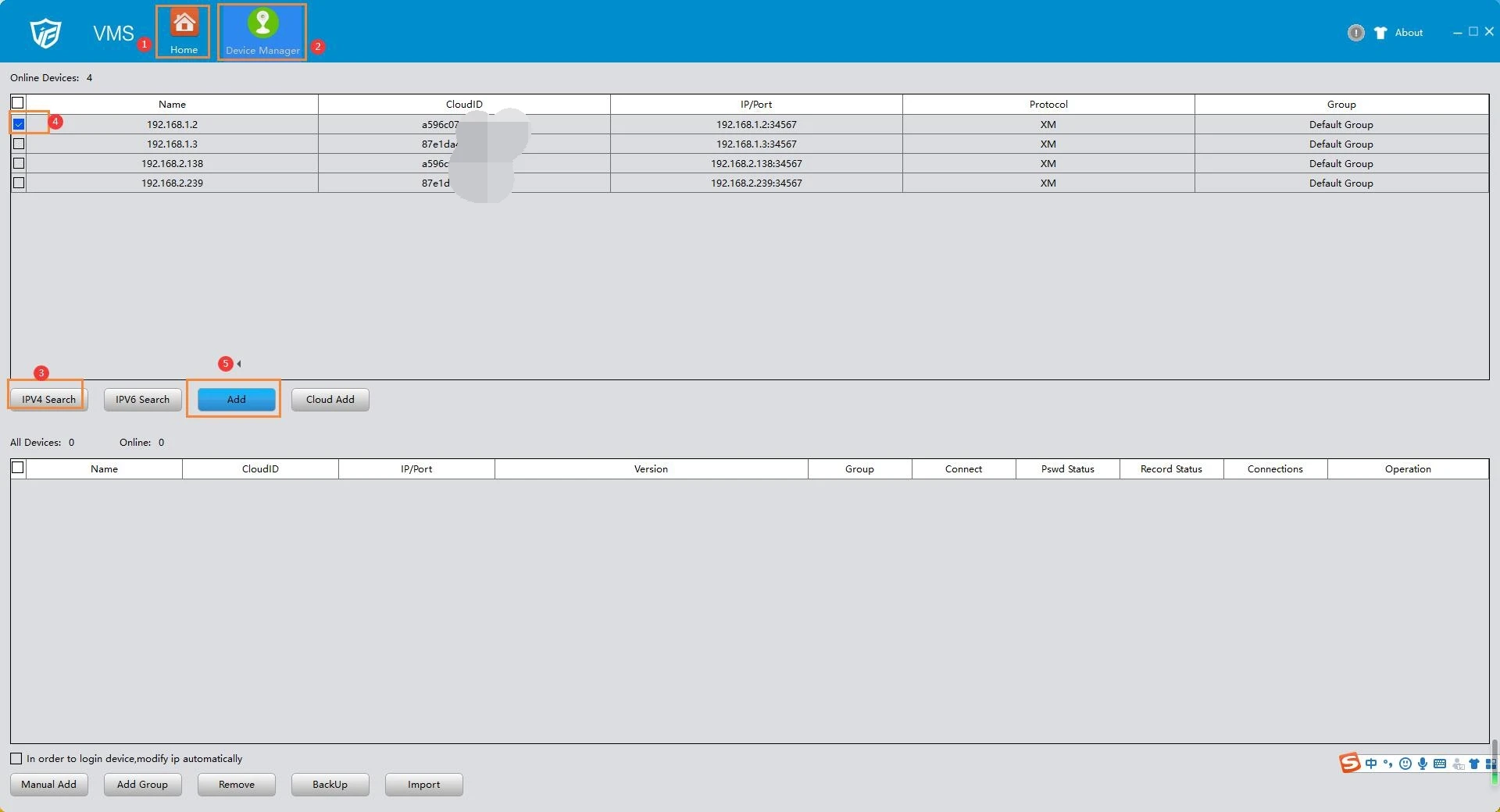

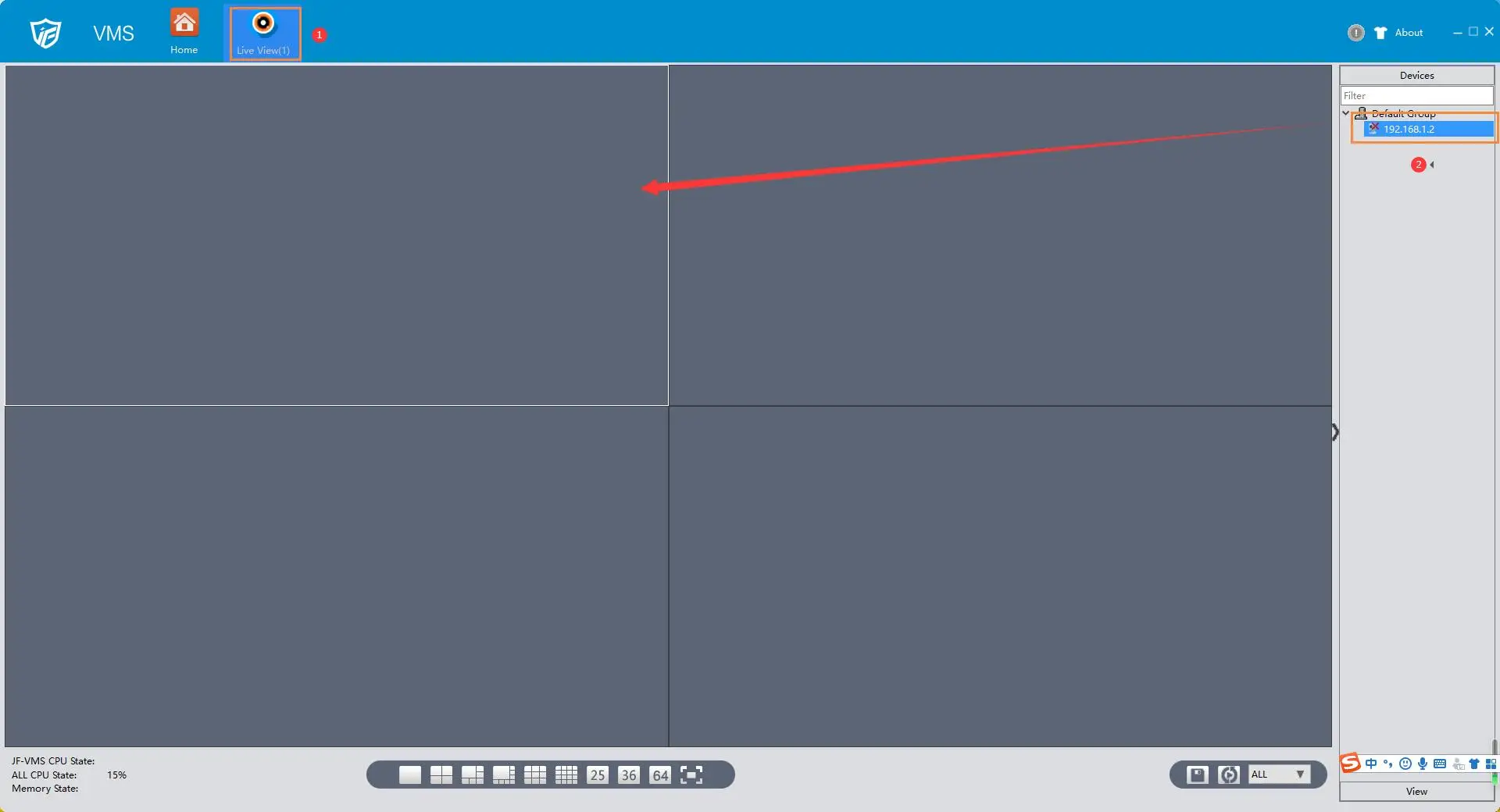

VMS For Local Review & Record
1. Please used your mobile phone to scan the QR code as below, and then click to download；

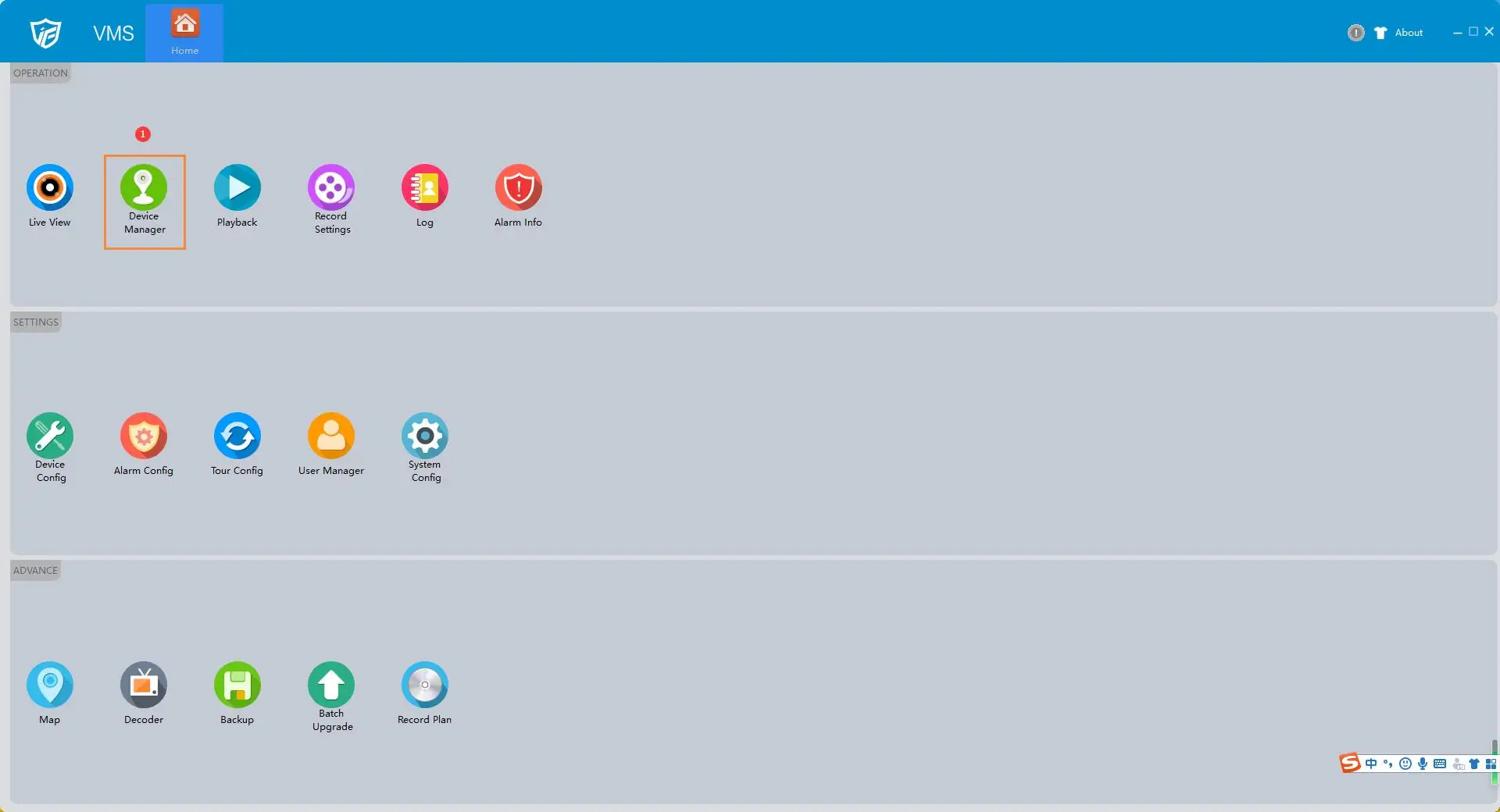

2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin

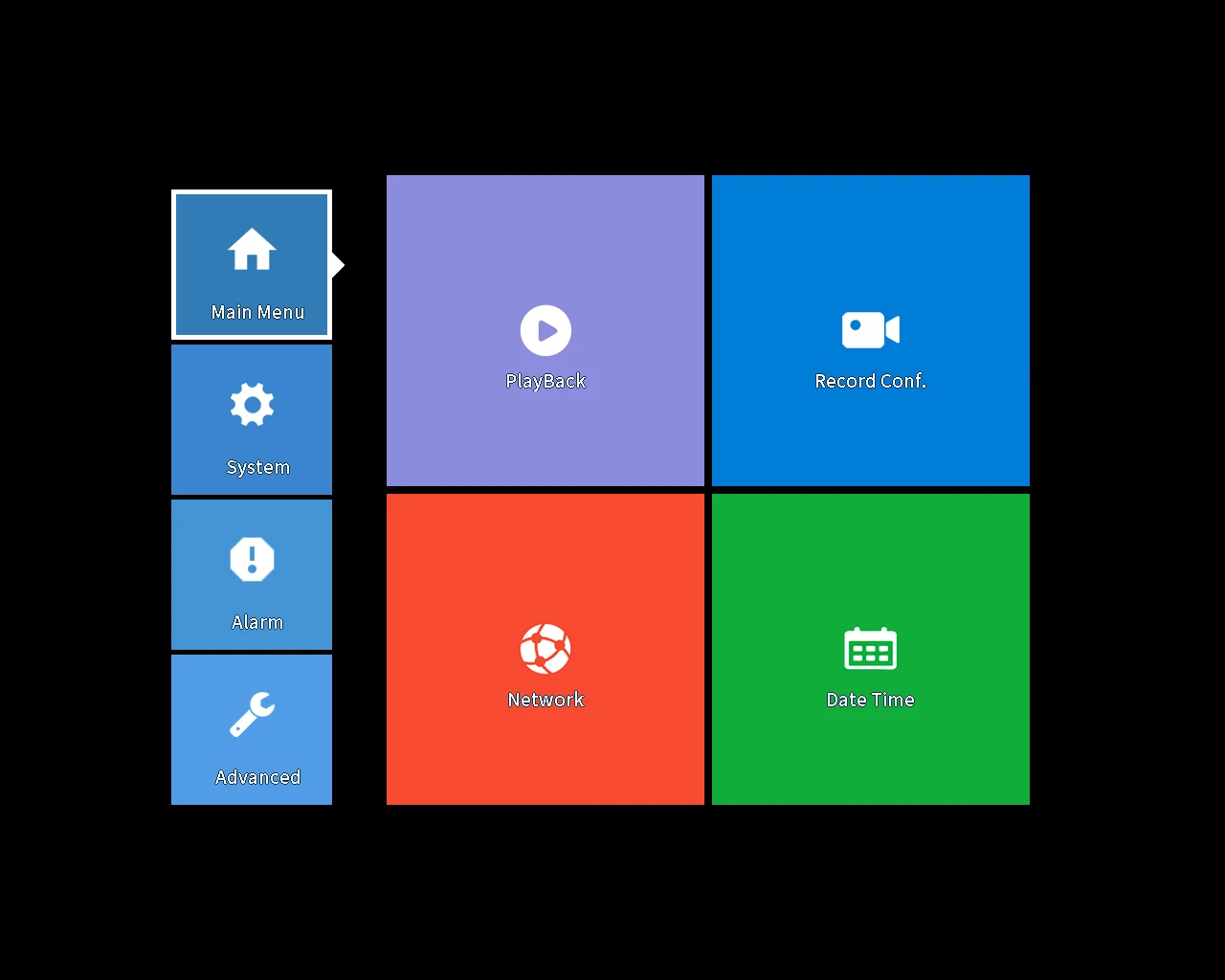

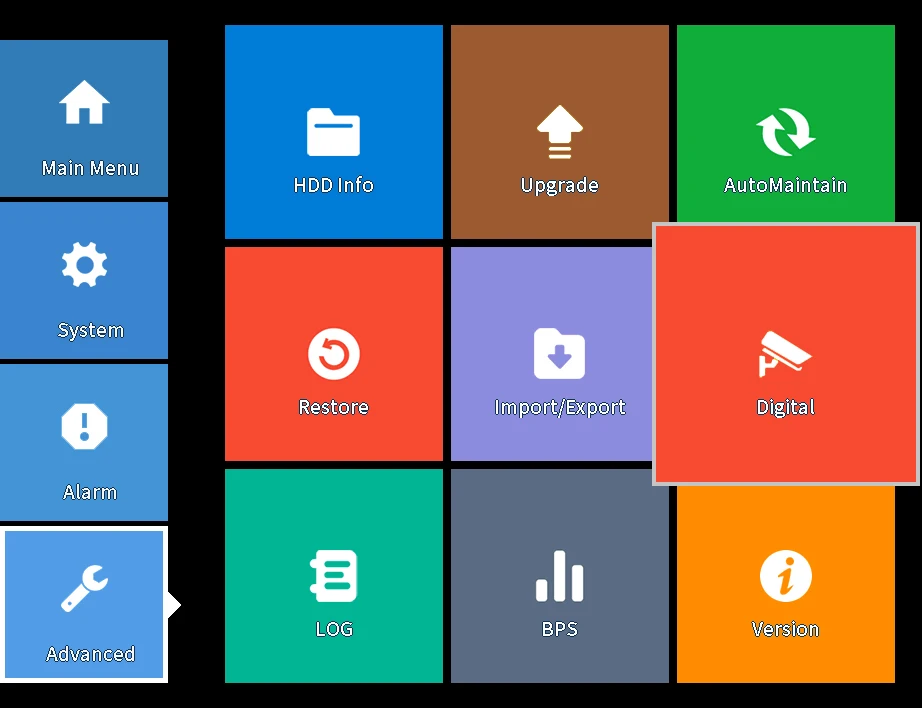

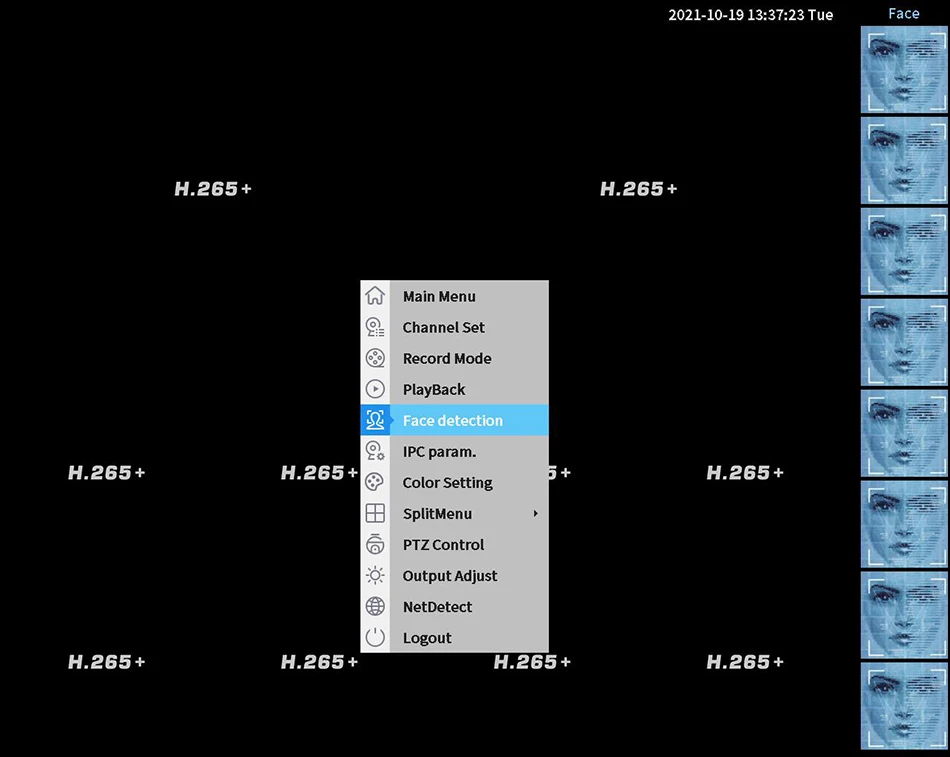

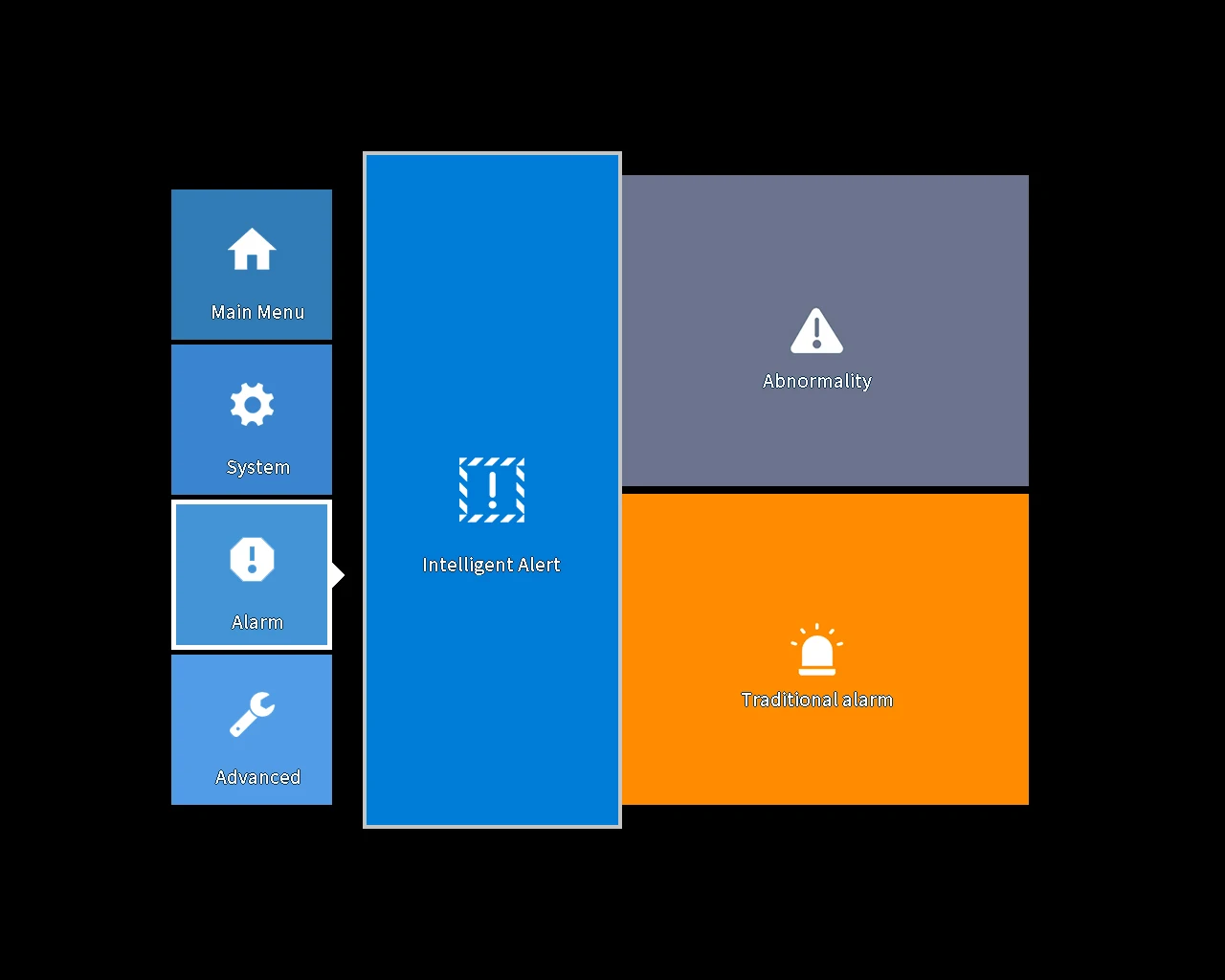

New Style Menu
