- Brand Name: BOAVISION
- Origin: Mainland China
- Network Protocol: DHCP,FTP
- Two-way Audio: NO
- Compression Format: H.265,H.264
- Hard drive Interface Type: SATA
- POE: 8 Port
- Certification: CE
- e-Cloud(P2P): YES
- IP Mode: Dynamic IP address,Static IP address
- Hard Drive Size: 3.5”
- Video Input Interface: VGA
- Supported Mobile Systems: iPhone OS,Android
- Model Number: N6704HE-POE/ N6708HE-POE
- Technology: Network
- Supported Operating Systems: Microsoft Windows 2000
- Video Standard: NTSC,PAL
- Smart home platform: Other
- Backup Type: Hard Drive
- Video Resolution: 1080P,5MP
- Alarm Action: FTP Photo,Email Photo,Local Alarm
- Video Output: 1CH VGA 1280X1024 60Hz
- Network Interface: RJ45 10/100M
- POE:: 4port / 8 Port
- APP :: XMEye
- Display quality:: Max:4K
- Playback quality:: 4K/5M/4M/3M/1080P
- Backup mode:: Network backup, USB hard disk, USB burner, SATA burner
- hdd:: 1 SATA(Up to 14TB for each disk)
The following XMEye POE NVR and XMEye POE Cameras can be compatible with each other for all functions . We advice to use them together ! All the devices are onvif-compatible , can be work with third party NVR & cameras !
4CH 8CH H.265 4K 8MP POE NVR Xmeye Smart AI Face Detection Video Recorder Video Surveillance System Security Protection
FULL 4K HD
With a high resolution of 8megapixels (3840 x 2160) , Capture videos in 3840p HD quality.
It is a huge advancement compared to 720p HD or 1080p Full HD.
You never miss any important detail . which enables you to see all objects very clearly.
Smart AI Face Recognition
Face Record/Face Detection/Face PlaybackRecord every face that appears on the lens, without missing any details.
You need use the Xmeye APP Face Detction Function IP Camera
Advanced H.265+ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264.
Advanced H.265 compression technology lets you save on storage space which allows for longer recording times. H.265 technology compresses your video without sacrificing any of the UltraHD video quality.
Power over Ethernet (POE), Plug & Play
This security system features Power over Ethernet (PoE) technology, a single network cable run between your NVR and each IP camera provides both power, video and audio transmission, allowing you to position your cameras anywhere without a nearby power outlet.
Easy Installation and connection , plug and play
Smart Video Playback
Advanced motion detection recording
Remote access anytime & anywhere ( APP : XMEye / XMEye pro )
48V POE CCTV System
Max Support 100 Meters Cables Transmission Distance ,
Which Greatly Increases Home Installation Convenience.
"XMEye pro " APP Connection steps

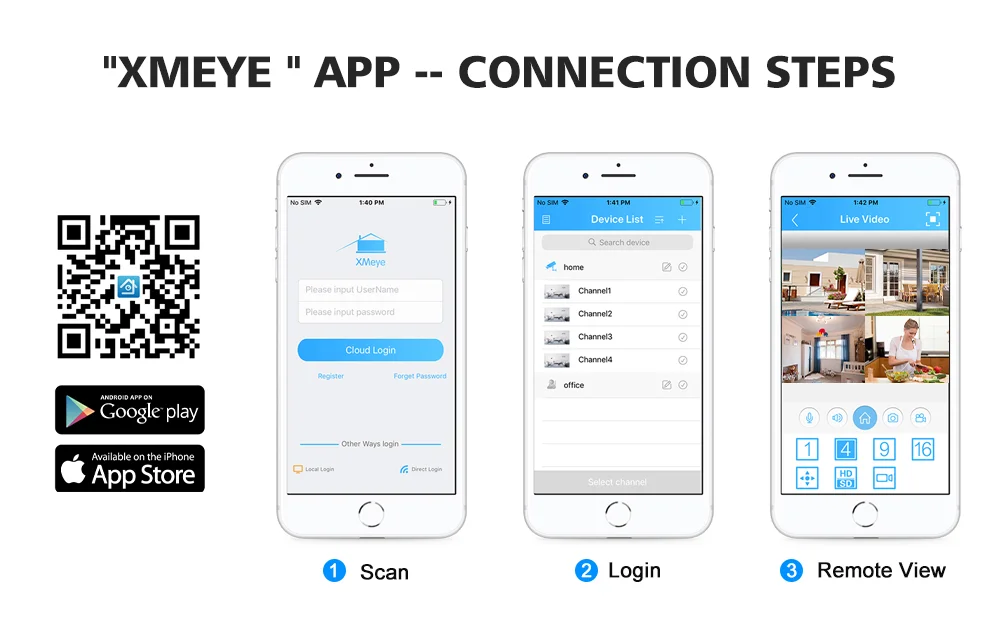

"XMEye " APP — Connection Steps
PC Software " VMS " — Connection Steps
Main Features:
1. Adapt advanced H.265 compression,transmit high quality video and save storage
2. 8MP/4K/5MP/4MP/3MP IP Camera video input;
3. support VGA & HD output;
4. Support web, CMS, center platform management software XMEye ;
5. Motion detection,support alarm record,push alarm message to email or FTP
6. P2P,Easy remote access via PC,iPhone,Android Smart Devices.
|
Model |
N6704HE-POE |
N6708HE-POE |
|
|
System |
Main processor |
Hi3536E |
|
|
Operating System |
Embedded Linux |
||
|
System resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
||
|
Interface |
Operator interface |
16-bit true color graphic menu operation interface, support mouse operation |
|
|
Preview |
1/2/4/6/9/10 |
||
|
Video |
Video input (IP) |
8*4K（Access bandwidth 72Mbps，Need to connect with 100M POE module） |
|
|
Video compression |
H.265AI/H.265+(compatible H.265/H.264) |
||
|
Display quality |
Max:4K |
||
|
Playback quality |
4K/5M/4M/3M/1080P |
||
|
VR |
Unsupport |
||
|
human shape / Face |
Support(depend on camera) |
||
|
Audio |
Audio compression |
G.711A |
|
|
Intercom |
unsupport |
||
|
Record & playback |
Recording mode |
Manual>Alarm>Dynamic Detection>Timing |
|
|
Localpayback(real-time+Un real-time) |
4K（1*real-time）/5M（1+1）/4M（2+1）/3M（3+1）/1080P（5+1） |
||
|
Search mode |
Search by Time/Calendar/Event/Channel/Face |
||
|
Record storage |
HDD、Network |
||
|
Backup mode |
Network backup, USB hard disk, USB burner, SATA burner |
||
|
External interface |
Video output |
1ch VGA，1ch HDMI HD output |
|
|
Audio I/O |
0/1（3.5MMaudiooutput） |
||
|
Alarm I/O |
0/0 |
||
|
Network interface |
1*RJ45 10M/100M Adaptive Ethernet port |
||
|
USB interface |
2*USB2.0 ports(one USB extension interface is reserved) |
||
|
HDD |
1 SATA(Up to 14TB for each disk) |
||
|
ESATA |
No |
||
|
Serial interface |
No |
||
|
Other |
ONVIF |
Support |
|
|
Power supply |
Expansion board 12V power supply |
||
|
Power Consumption |
<10W(Without HDD) |
||
|
Work environment |
Temperature:0℃－55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
||
|
Dimension |
|||
|
Weight |
|||
