220V Smart Parking Double Channel Vehicle Exit Car Loop Detector PD232 Loop Detector For Access Control System Parking System

Smart parking double channel vehicle exit car loop detector PD232 loop detector for Access control system parking system

If you need other voltage, please leave a mark in the order or leave a message to the seller

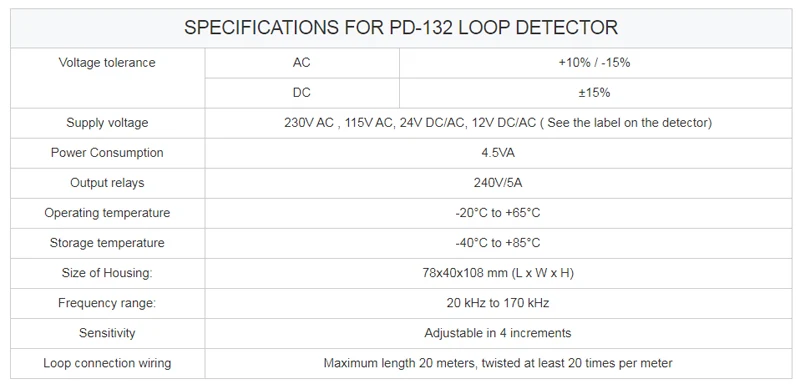

Operating voltage 220V AC ±10%

Power Consumption: ≥5VA

Output relays: 240V/5A AC

Frequency range: 20 kHz to 170 kHz

Reaction time: 10ms

Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes

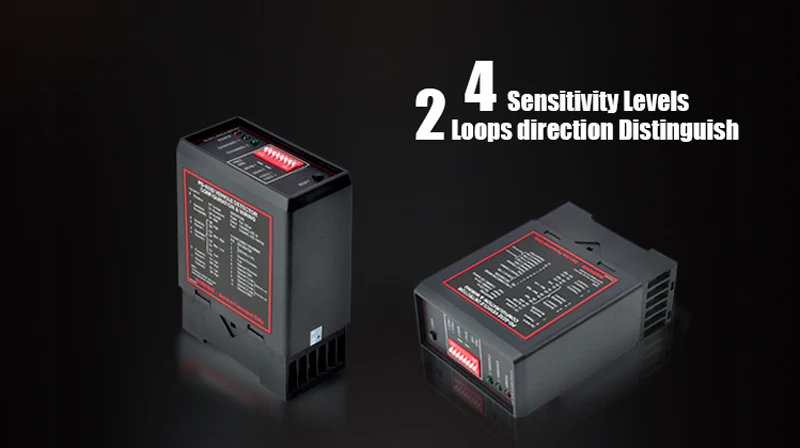

Sensitivity: adjustable in 8 increments

Wiring: 50μH and 300μH. Ideal is 150μH

Loop connection wiring: Maximum length 200 meters, twisted at least 20 times per meter

Autocorrecting time: 1to 2seconds

Operating temperature: -20°C to +65°C

Storage temperature: -40°C to +85°C

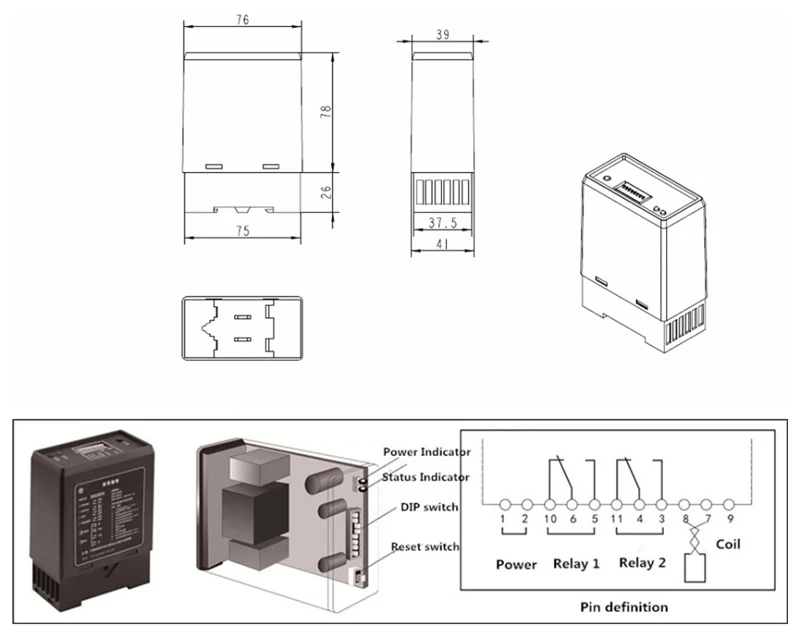

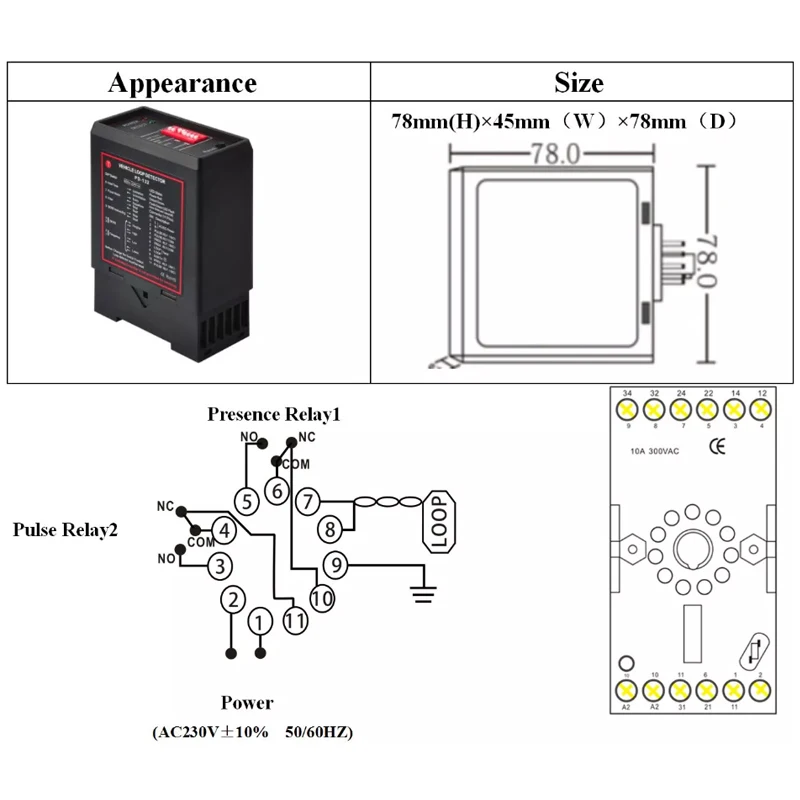

Dimensions (include pedestal ): 78x40x108 mm (L x W x H)

Net Weight include pedestal: 265g

Product Application

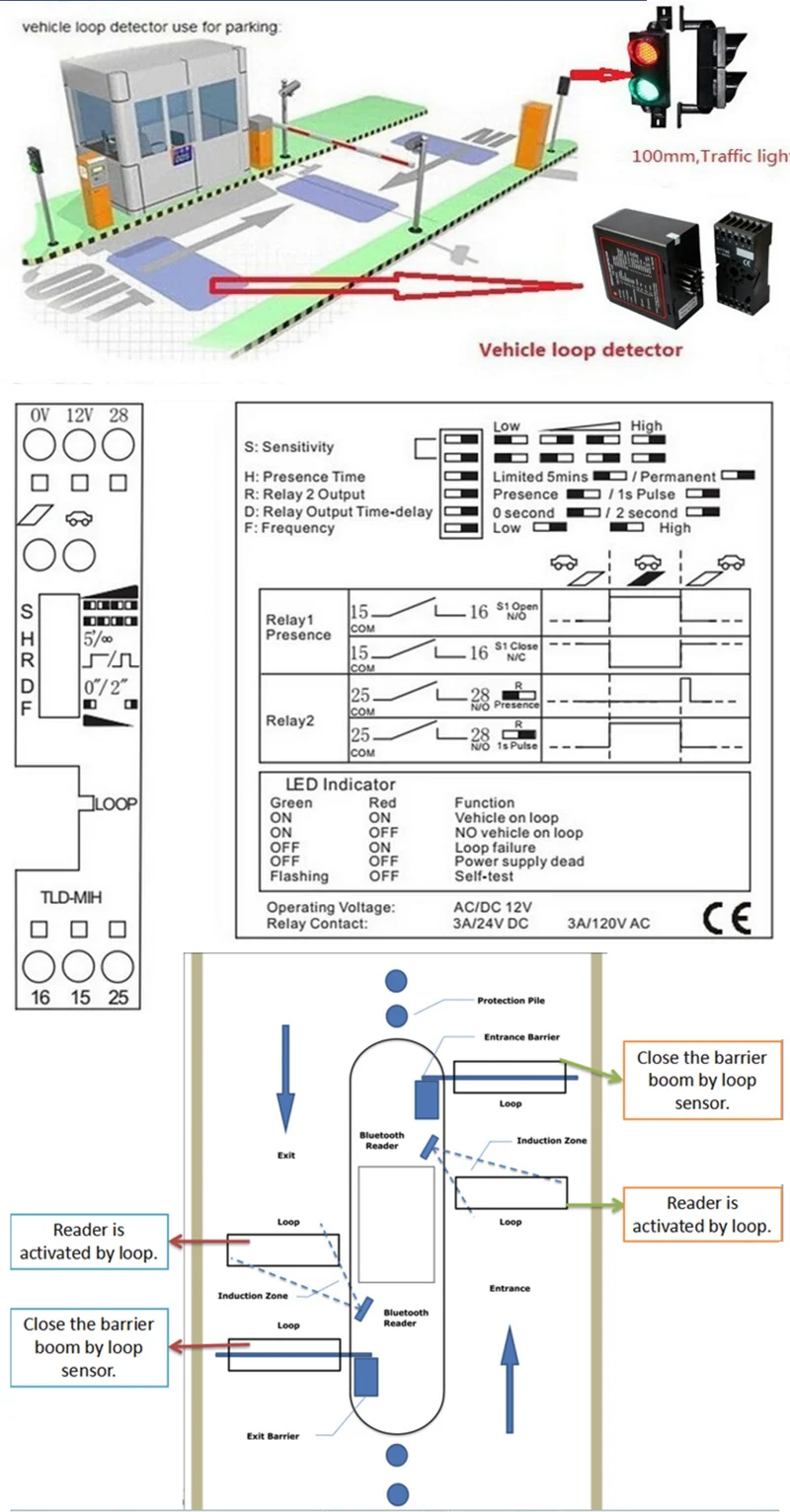

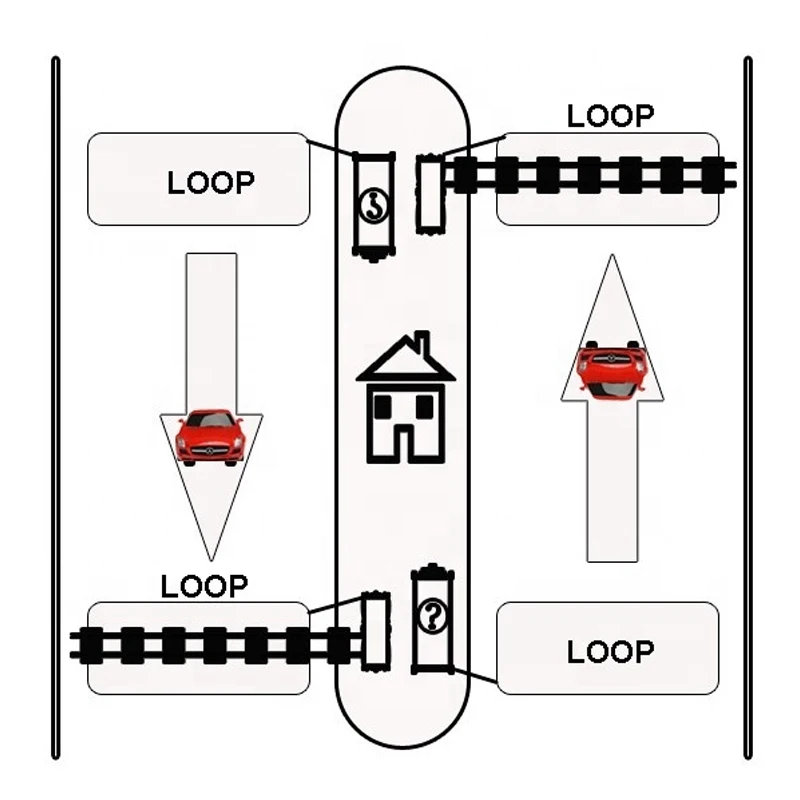

PD132 loop detector used for wherever vehicles have to be detected,Monitoring and safe-guarding access ways or for counting vehicles.

Output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots.

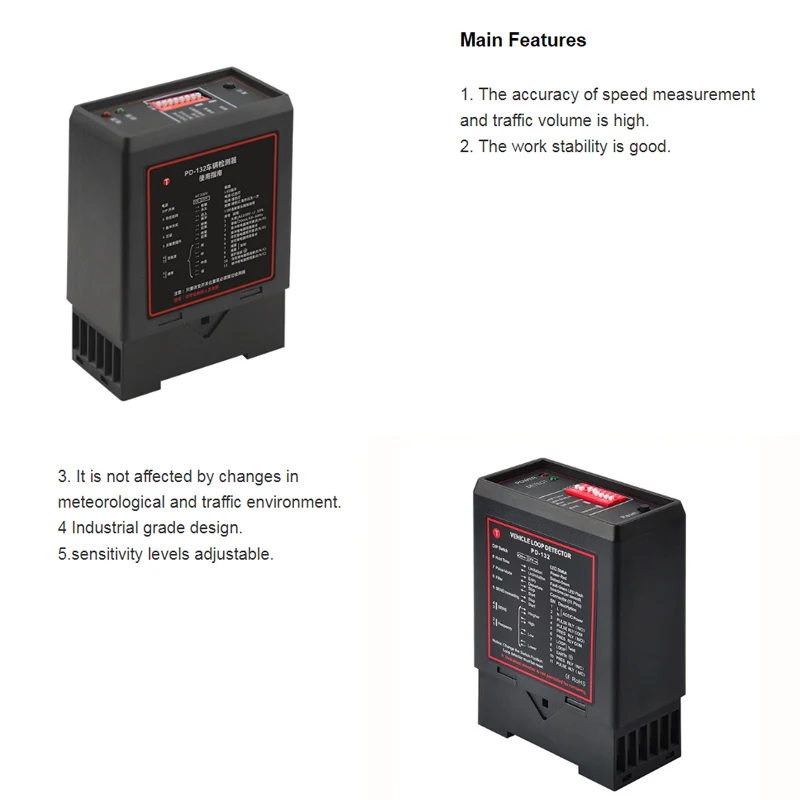

Uses advanced microprocessor technology and can work in diverse environments.

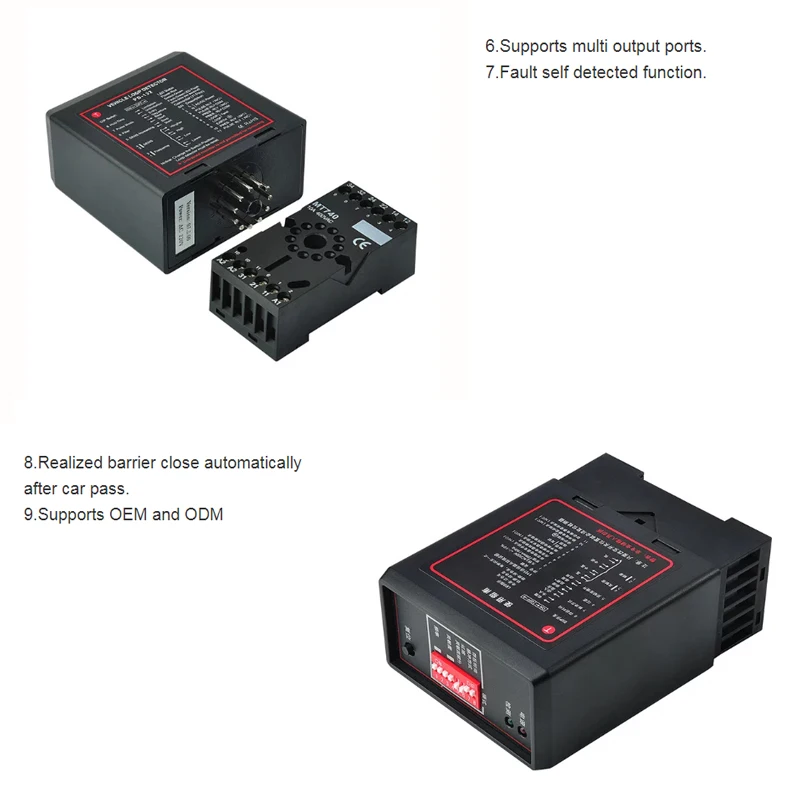

Has two way output relays: one is unlimited output when loop is permanently covered and while the other is multiple mode that can be set by users.

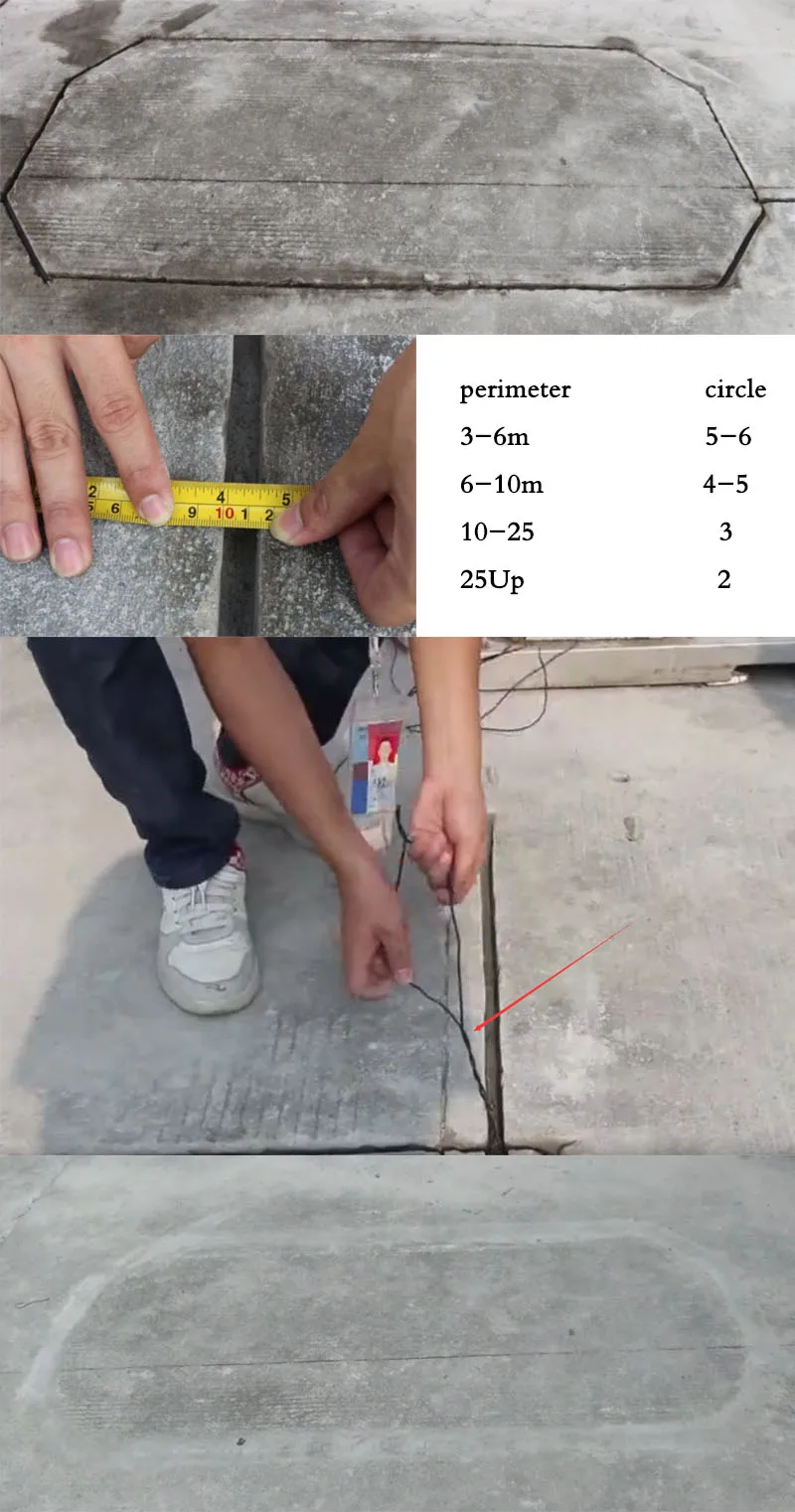

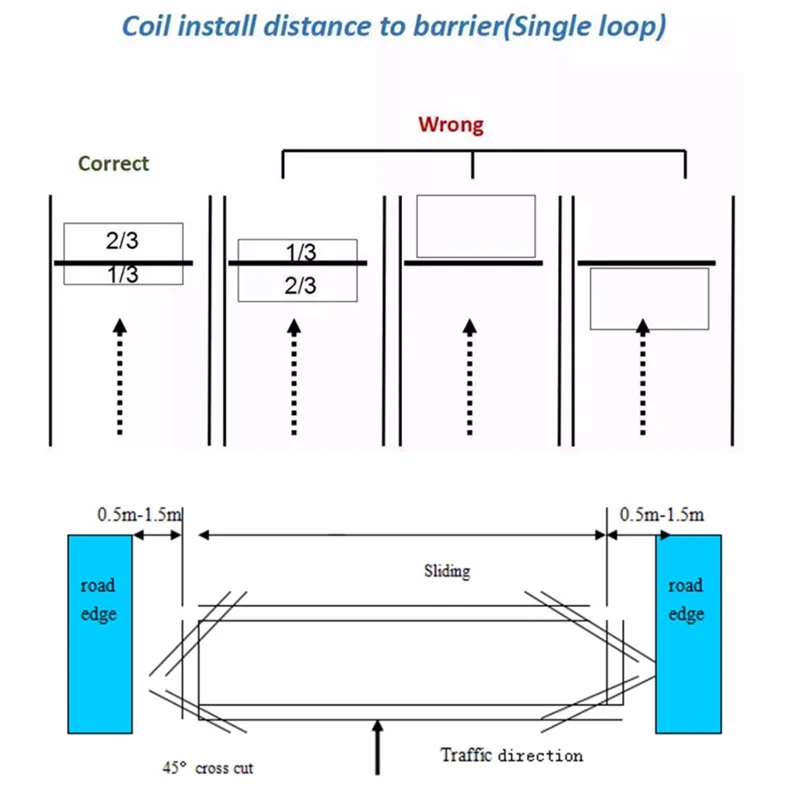

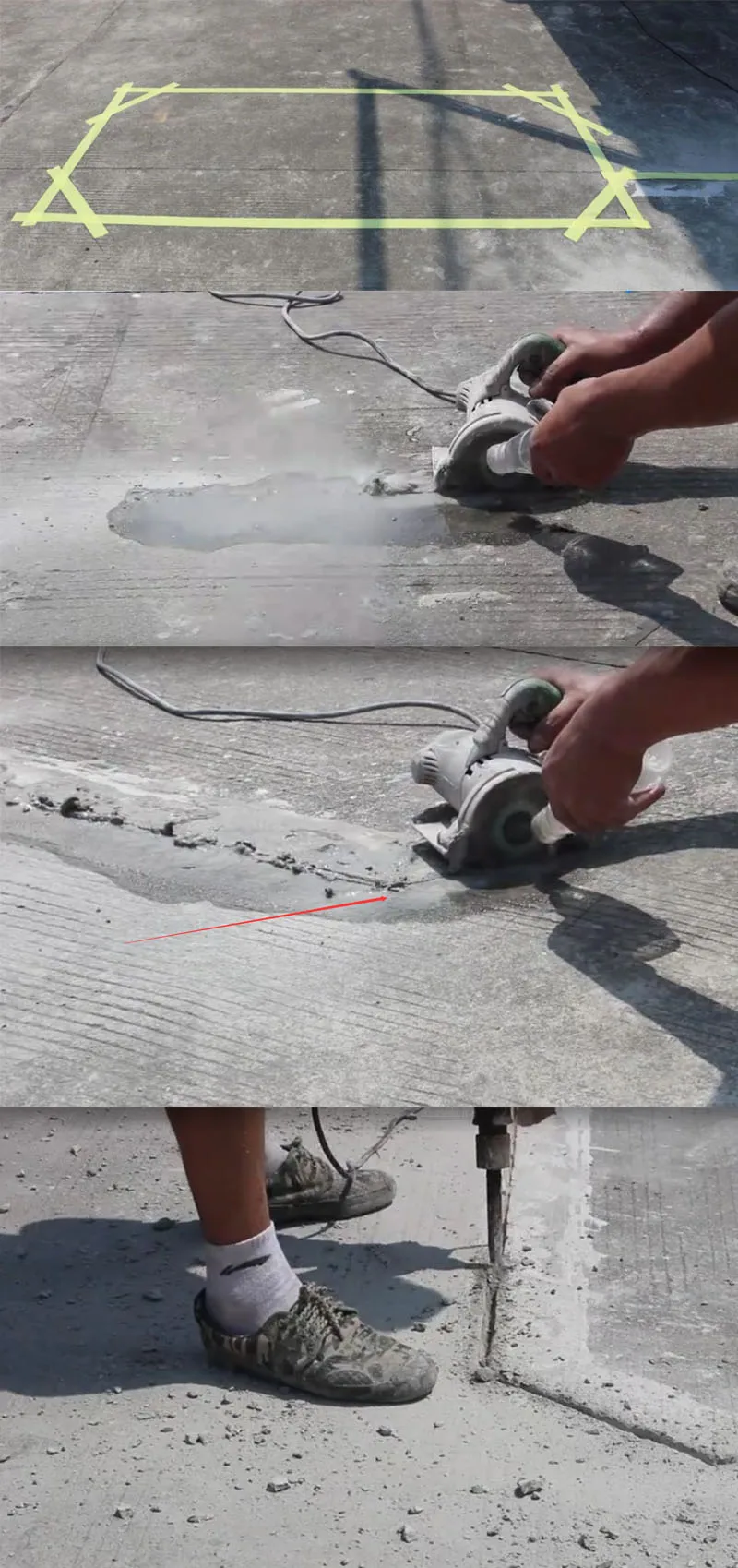

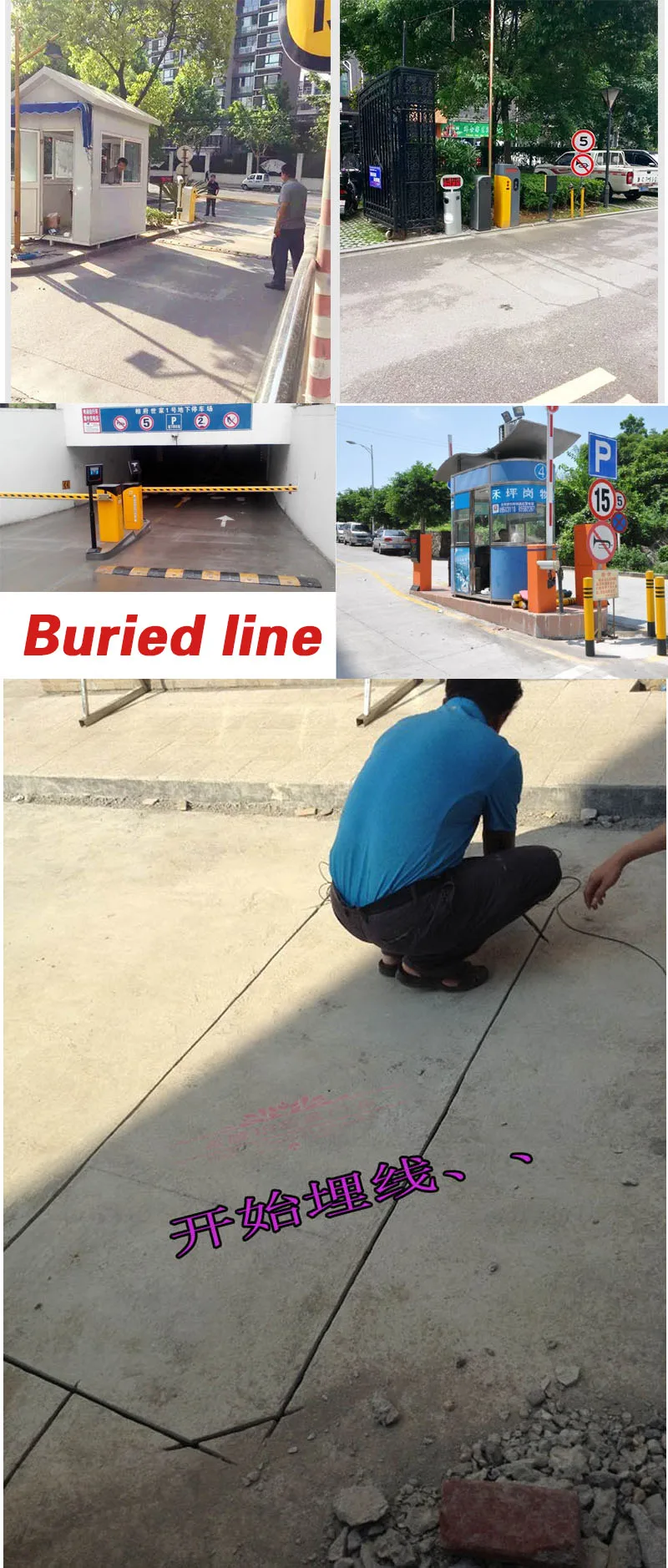

installation site
